Transforms and its Applications: UNIT 4: Fourier Transform

Properties of Fourier Sine and Fourier Cosine Transform

Fourier Transform: Formula, Statement, Example Important Solved Problems with formula, steps, derivation and answer based on Properties of Fourier Sine and Fourier Cosine Transform.


Properties of Fourier sine transform and Fourier cosine



1. Linear property

 (i) Fs [af(x) + bg (x)] = a Fs [f(x)] + b Fs [g (x) ]

 (ii) Fc [af(x) + bg (x)] = a Fc [f(x)] + bFc[g (x)]

Proof: (i) We know that,


= a Fs [f(x)] + b Fs (g(x)]

 (ii) We know that,




2. Modulation property:

(i) FS[f (x) sin ax ] = 1⁄2 [ Fc(s − a) − Fc(s + a) ]

(ii) FS [f (x) cos ax] = 1/2 [Fc(s + a) + Fc(s − a) ]

 (iii) FC [f(x) sin ax] = 1⁄2 [Fs(a + s) + Fs(a − s) ]

 (iv) FC [f (x) cos ax] = 1/2 [Fc(s + a) + Fc(s − a) ]

Proof:





3. FS [f(ax) ] = 1/a Fs [s/a] [Change of scale property]

Proof:

FS [f(ax) ] = √(2/π) 0ʃ∞ f(ax) sin sx dx




4. Fs [f ‘(x)] = −s Fc(s), if f(x) → 0 as x→ ∞.

 [Transform of derivative]

Proof:




5. FC [f ' (x)] = − √(2/π) f(0) + sFS(s)    if f(x) → 0 as x→ ∞.

 [Transform of derivative]

Proof:




6. Fs [xf(x)] = ‒ d/ds [FC(s)]

[Derivatives of transform]

Proof: We know that,




7. Fc [xf(x)] = d/ds FS(s)

Proof: We know that,





Problems based on properties of F.C.T AND F.S.T.

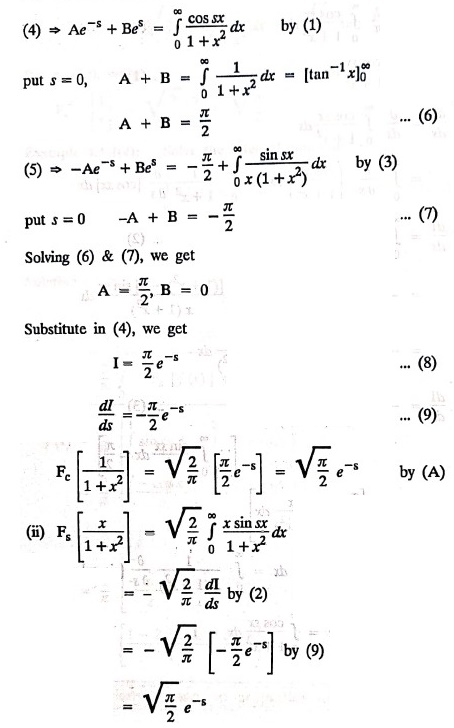

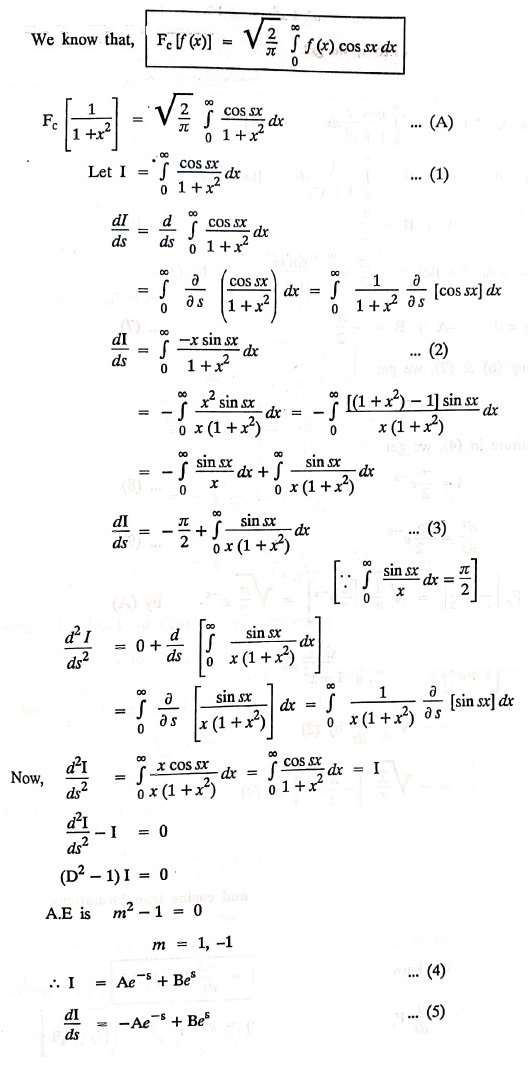

Example 1: (i) Find the Fourier cosine transform of 1 / 1+x2.

(ii) Find the Fourier sine transform of 1 / 1+x2.

Solution: We know that,

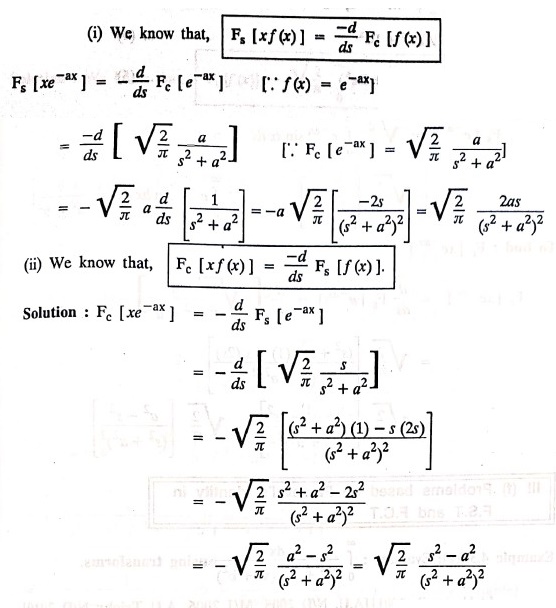

Example 2: Find the Fourier sine and cosine transformations of xe‒ax.

Solution:

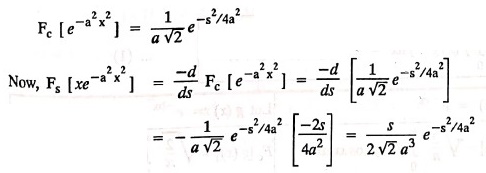

Example 3: Find Fourier cosine transform of  and hence find Fs [x].

Solution:

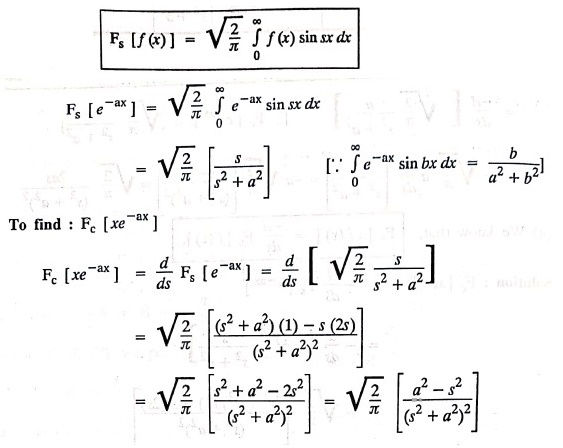

Example 4: Find the Fourier sine transform of e‒ax hence find the Fourier cosine transform of x‒ax.

Solution: We know that,
