Standard Template Library

Standard Template Library

• The standard template library(STL) is collection of well structured generic C++ classes (templates) and functions. Basically STL consists three basic components ‒

1. Container 2. Algorithms 3. Iterators

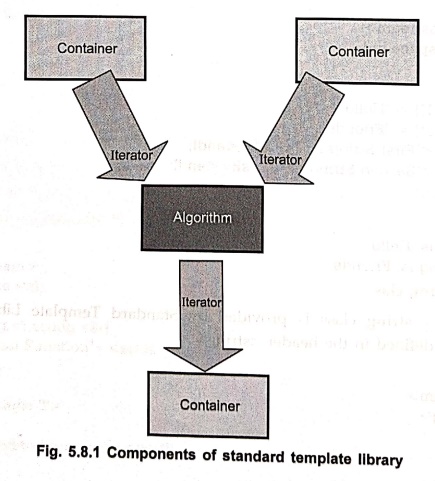

Fig. 5.8.1 Components of standard template library

Templates and Exception Handling

• The standard template library is built using template and it is orthogonal in design because components can be used in combination with one another. Let us discuss these components in detail.

1. Container

• The container is a collection of objects of different types. These objects store the data. The container can be implemented using template classes. Various types of container are ‒

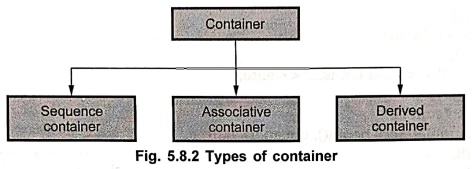

Fig. 5.8.2 Types of container

a) sequence container ‒ It consists of all the classes who represent the sequence or linear list. For example, vector class defines dynamic array. Dequeue is for creating doubly ended queue i.e. we can perform insertion and deletion of elements from both the ends of queue and list provides a linear list.

b) Associative container ‒ It allows efficient retrieval of values based on keys. For example in map one can retrieve or store the data with the help of unique key. Other examples of associative container are set, multiset, multimap.

c) Derived container ‒ The derived containers are created from the sequence Poufs containers. The derived containers are stack, queue and priority queue. These are 20 also known as container adaptors.

 Each container class defines a set of functions that may be applied to the container.

• For example, a list container includes functions that insert, delete and merge nonish elements. A stack includes functions that push and pop values.

• Following is a simple example of container class for list container which bobo demonstrates sequence container.

#include <iostream>

#include <list> // list container

#include <numeric> // for accumulate

using namespace std;

// Using the list container

void print(list<double>&lst)

{

      list<double>::iterator key; // traverse iterator

      for (key = lst.begin(); key = 1st.end(); ++key)

      cout << *key << '\t';

      cout << endl;

}

int main()

{

      double array[4] = { 30, 20, 10, 40 };

      list<double> obj;

      for (int i = 0; i < 4; ++i)

      //inserting elements in the list

      obj.push_front(array[i]);

      print(obj);

      //sorting of the list

      obj.sort();

      cout<<"The sorted list is..."<<endl;

      print(obj);

      cout << "sum is

      << accumulate(obj.begin(), obj.end(), 0.0)

      << endl;

      return 0;

}

Output

40 10 20 30

The sorted list is...

10 20 30 40

sum is 100

• In above program the list container is used. An array consists of 4 double values. These double values will be pushed into the list container. The print function uses isan iterator to print each element of the list. The iterator acts like a pointer. The begin() and end() are the member functions of the list container. The begin() represents the starting and end represents the ending locations of the container. The sort() function is useful for sorting the elements. This member function basically represents the stable sorting algorithm. The numeric package is included for supporting the accumulate() function. It uses 0.0 as the initial value and then computing the sum of all the elements starting from the location obj.begin() to obj.end(). Various member functions of container class are enlisted in following table.

Member        ‒     Meaning

CAN::CAN()  ‒    Can hold the item. It is a copy constructor.

CAN::CAN(c) ‒  Copy constructor.

c.begin()          ‒   For referring the beginning location.

c.end()              ‒  Ending location of the list.

c.rbegin()           ‒  Beginning by a reverse iterator.

c.rend()              ‒ End used by reverse iterator.

c.size()               ‒ Number of elements in CAN.

c.swap(d)           ‒ Swaps two CANS.

c.empty()           ‒ It is Boolean. If empty it's value is true.

The following program shows an associative container ‒

#include <iostream>

#include <map>

#include <cstring>

using namespace std;

int main()

{

     map<string, int, less<string>> age; // map is associative container

     age["Shivani"] = 10;

     age["Parth"] = 05;

     age["Prasad"] = 25;

     cout << "Parth is " << age["Parth"]<< " years old.";

     return 0;

}

2. Iterators

• The iterators are basically objects but sometimes they can be pointers and hence iterators specify the positions in container. The iterators are used to traverse the contents of container. There are five types of iterators.

Iterator                 ‒   Description

Random access    ‒  Elements can be stored or retrieved randomly.

Forward               ‒  The elements can be stored or retrieved but only forward moving is allowed.

Input                    ‒   Elements retrieving is allowed with forward moving.

Output                 ‒    Elements storing is allowed with forward moving.

Bidirectional        ‒   Store and retrieve the elements and forward/backward moving is allowed.

•  Levels of functionalities of different iterators is as shown below.

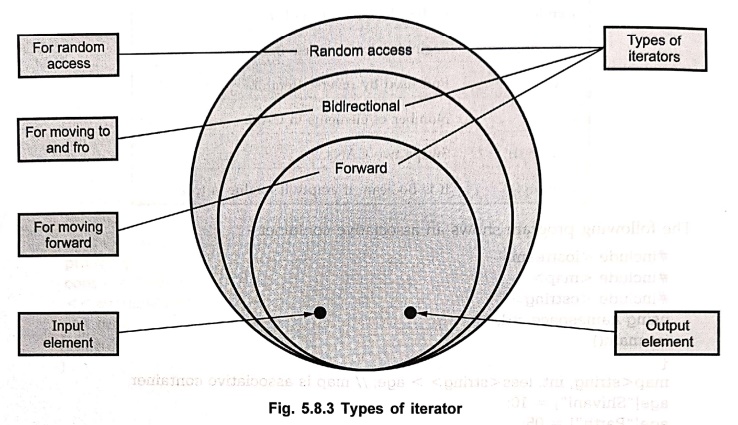

Fig. 5.8.3 Types of iterator

#include <iostream>

#include <set>

using namespace std;

int main()

{

     int arr[4] ={1,2, 3, 4 }, *ptr = arr;

     set<int, greater<int>> s;

     sonar set<int, greater<int>>: :: const_iterator it;

     while (ptr != arr + 4)

     s.insert(*ptr++);

     cout << "The numbers below 5: " << endl;

     for (it = s.begin(); it != s.end(); ++it)

     cout << *it << '\t';// Using iterator 'it' traversing array

     cout << endl;

     return 0;

}

Output

The numbers below 5:

4      3     2      1

•  The above given program is a simple example in which the iterator for the set container is used. The iterator is given to be variable it which traverse through the range from s.begin() to s.end(). The iterator is basically a pointer which navigates the contents of the container.

3. Algorithms

• The algorithms are used are used to process the contents of the containers. The functionalities provided in container are not sufficient to perform complex operations hence the algorithms are used to support more complex operations for the containers. Using algorithms the reusability can be achieved in STL.

• In order to access the STL algorithms we have to write <algorithm> in the program.

Various categories of algorithm are ‒

1. Sorting algorithms‒These algorithms contain the functionalities related to sorting of the list.

2. Mutating sequence algorithms ‒ These algorithms modify the contents of the container. For example copy() operation will modify the contents of the container.

3. Nonmutating sequence algorithms ‒ These algorithms do not modify the contents of the container as they work. For instance count() will simply count the occurrences in the container.

4. Numerical algorithms ‒ These algorithms are useful for performing some computations. For instance sum of all the elements can be obtained by the function accumulate().

We will write a simple program for sorting the elements of an array using sorting bag algorithm.

#include <iostream>

#include <algorithm>//keyword algorithm included

#define SIZE 10

using namespace std;

int main()

{

int n,item;

int array[SIZE], i;

cout<<"How Many Elements You Want to Enter";

cin>>n;

//setting the range for sorting

int *Limit= array + n;

cout<<"Enter The Numbers";

for (i = 0; i < n; ++i)

{

       cin>>item;

       array[i] = item;

}

//calling the function from algorithm

sort(array, Limit);

//displaying the sorted list of elements

cout<<"\n The sorted list is ..."<<endl;

for (i = 0; i < n; ++i)

cout << array[i] << '\t';

cout << endl;

return 0;

}

Output

How Many Elements You Want to Enter 7

Enter The Numbers

4

3

1

2

7

6

5

The sorted list is …

1   2   3   4   5   6   7

• In above program the keyword <algorithm> is used and the sort is a function that is supported by the sorting algorithm. By this function the quick sort is performed over the range of the array from first element to the last element of the array. Hence we set the range by a Limit Limit variable(from 0^th position of array to N).

We will summarize various algorithms and supporting functionalities in following tables ‒

Sorting algorithm

  Function             ‒    Description

1. sort()                 ‒    Using quick sort the elements are sorted.

2. stable_sort()       ‒   Using stable sorting method the elements are sorted.

3. merge()               ‒    This function is used for merging the elements.

4. sort_heap()         ‒  Performs sorting on already created heap.

5. min()                  ‒   It finds the minimum element.

6. max()                 ‒    It finds the maximum element.

7. binary_search()  ‒ It performs the binary search on the sorted elements to search for particular element.

Mutating algorithm

Function                 ‒ Description

1.copy()                   ‒   Copies the sequence of elements.

2.copy_backward()‒Copies the sequence of elements from end of the list, i.e. copies the list in backward direction.

3.reverse()               ‒ This function is used to reverse the given sequence of elements.

4.unique()                ‒ It finds the adjacent duplicate elements and removes them.

Nonmutating algorithm

Function     ‒     Description

1.find()       ‒   It will find the position of desired element.

2.count()    ‒ This function counts the number of elements in the given sequenc

3.equal()    ‒  It checks whether the two sequences are equal or not. If two sequences are matching then it returns true.

4.search()    ‒   This operation is used for searching the desired element from the given sequence.

Numerical algorithm

Function                        ‒  Description

1.accumulate()              ‒  Successive elements are summerized and a sum of all the elements in a given sequence is obtained.

2. inner_product()        ‒ It performs the product operation on a pair of sequences.

3.partial_sum()             ‒ It obtains the sequence by summing the pair of sequences.

4.adjacent_difference() ‒ It produces a sequence from another sequence.



Review Questions

1. Explain the terms container, iterators and algorithms.

2. What is mutating and non mutating algorithms ?

3. Explain major categories of containers supported by STL

4. Explain the components of standard template library in detail.
