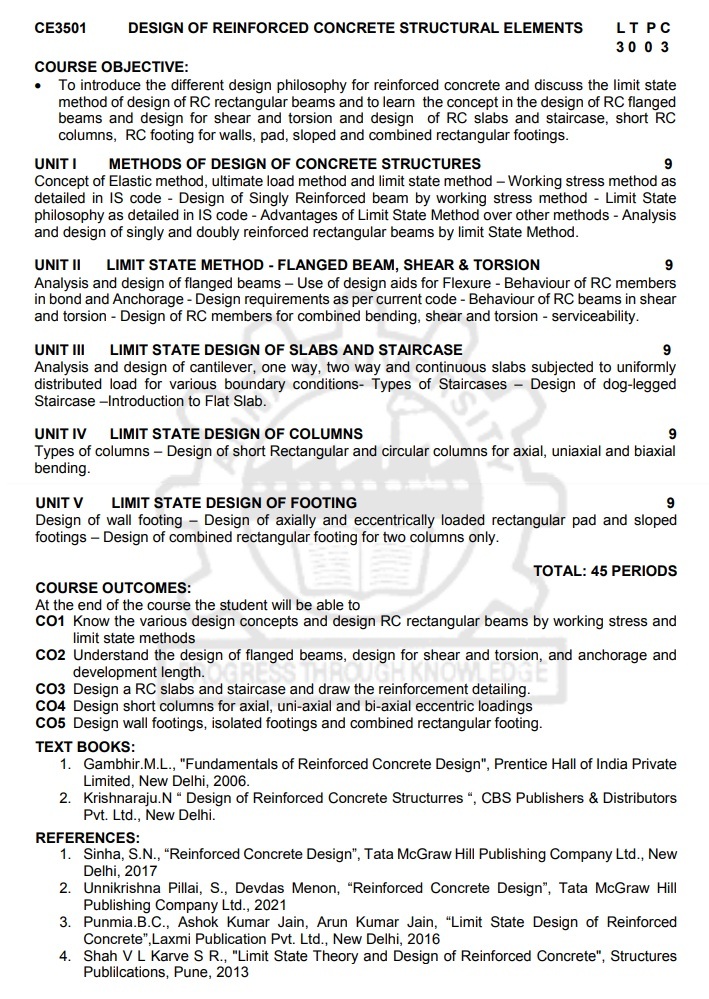

Design of Reinforced Concrete Structural Elements

DESIGN OF REINFORCED CONCRETE STRUCTURAL ELEMENTS

COURSE OBJECTIVE:

• To introduce the different design philosophy for reinforced concrete and discuss the limit state method of design of RC rectangular beams and to learn the concept in the design of RC flanged beams and design for shear and torsion and design of RC slabs and staircase, short RC columns, RC footing for walls, pad, sloped and combined rectangular footings.

UNIT I

METHODS OF DESIGN OF CONCRETE STRUCTURES

Concept of Elastic method, ultimate load method and limit state method - Working stress method as detailed in IS code - Design of Singly Reinforced beam by working stress method - Limit State philosophy as detailed in IS code - Advantages of Limit State Method over other methods - Analysis and design of singly and doubly reinforced rectangular beams by limit State Method.

UNIT II

LIMIT STATE METHOD - FLANGED BEAM, SHEAR & TORSION

Analysis and design of flanged beams - Use of design aids for Flexure - Behaviour of RC members in bond and Anchorage - Design requirements as per current code - Behaviour of RC beams in shear and torsion - Design of RC members for combined bending, shear and torsion - serviceability.

UNIT III

LIMIT STATE DESIGN OF SLABS AND STAIRCASE

Analysis and design of cantilever, one way, two way and continuous slabs subjected to uniformly distributed load for various boundary conditions- Types of Staircases - Design of dog-legged Staircase -Introduction to Flat Slab.

UNIT IV

LIMIT STATE DESIGN OF COLUMNS

Types of columns - Design of short Rectangular and circular columns for axial, uniaxial and biaxial bending.

UNIT V

LIMIT STATE DESIGN OF FOOTING

Design of wall footing Design of axially and eccentrically loaded rectangular pad and sloped footings - Design of combined rectangular footing for two columns only.

TOTAL: 45 PERIODS

COURSE OUTCOMES:

At the end of the course the student will be able to

CO1 Know the various design concepts and design RC rectangular beams by working stress and limit state methods

CO2 Understand the design of flanged beams, design for shear and torsion, and anchorage and development length.

CO3 Design a RC slabs and staircase and draw the reinforcement detailing.

CO4 Design short columns for axial, uni-axial and bi-axial eccentric loadings

CO5 Design wall footings, isolated footings and combined rectangular footing.

TEXT BOOKS:

1. Gambhir.M.L., "Fundamentals of Reinforced Concrete Design", Prentice Hall of India Private Limited, New Delhi, 2006.

2. Krishnaraju.N" Design of Reinforced Concrete Structurres", CBS Publishers & Distributors Pvt. Ltd., New Delhi.

REFERENCES:

1. Sinha, S.N., "Reinforced Concrete Design", Tata McGraw Hill Publishing Company Ltd., New Delhi, 2017

2. Unnikrishna Pillai, S., Devdas Menon, "Reinforced Concrete Design", Tata McGraw Hill Publishing Company Ltd., 2021

3. Punmia.B.C., Ashok Kumar Jain, Arun Kumar Jain, "Limit State Design of Reinforced Concrete", Laxmi Publication Pvt. Ltd., New Delhi, 2016

4. Shah V L Karve S R., "Limit State Theory and Design of Reinforced Concrete", Structures Publications, Pune, 2013
