Z Transform: Example Important Solved Problems with formula, steps, derivation and answer based on Inverse Z Transform - Inverse integral method (Cauchy's residue theorem).

INVERSE Z-TRANSFORM



Def. Inverse Z‒transform

If Z[x(n)] = X(z) then Z‒1[X (z)] = [x(n)]

Z‒1[X(z)] can be found out by any one of the following methods.



INVERSE Z-TRANSFORM: CAUCHY'S RESIDUE THEOREM



Inverse of Z‒transform by Inverse integral method. (Cauchy's residue theorem)

From the relation between the Z‒transform and Fourier transform of a sequence we get


By Cauchy's residue theorem

ʃC X(z) zn-1 = 2πi [sum of the residues of X(z) zn-1 at the isolated singularities]

i.e., x(n) = sum of the residues of X(z) zn-1 at the isolated singularities

Note: Take the contour C such that all the poles of the function X(z)zn-1 lie within the contour.

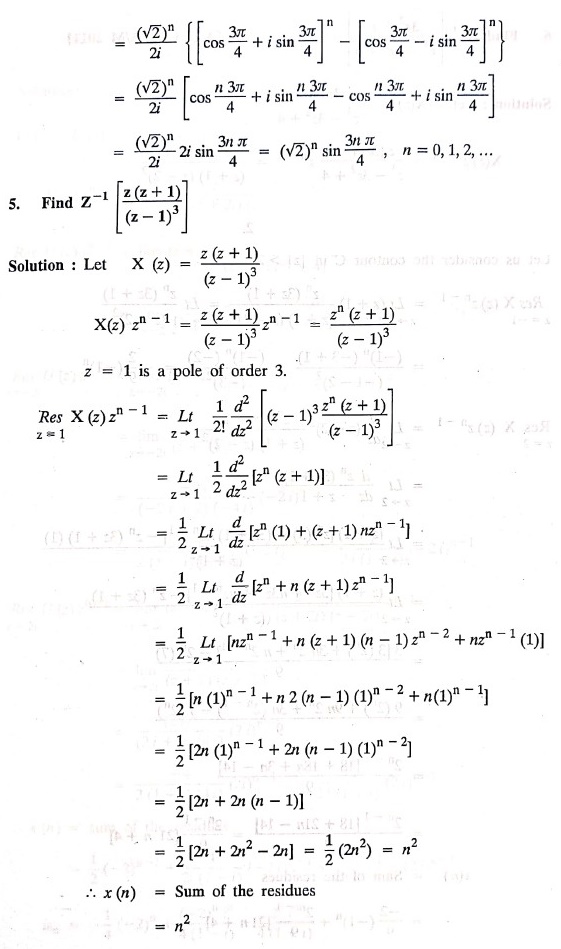

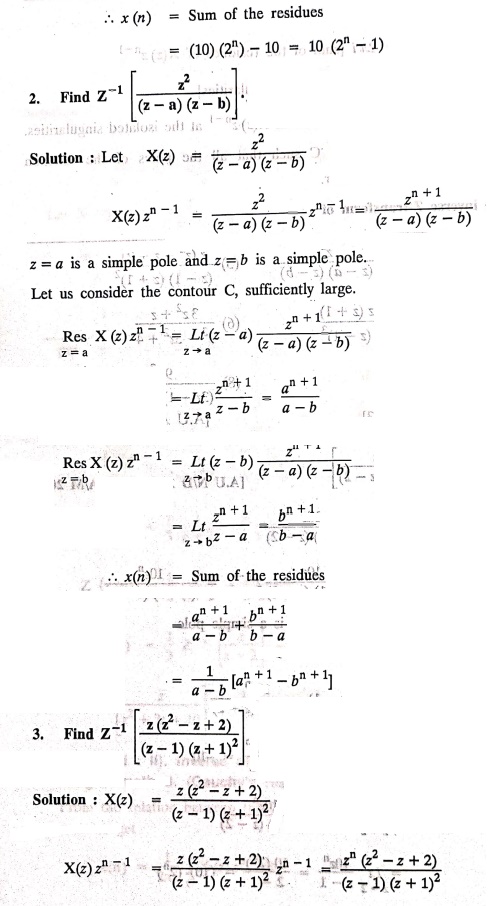

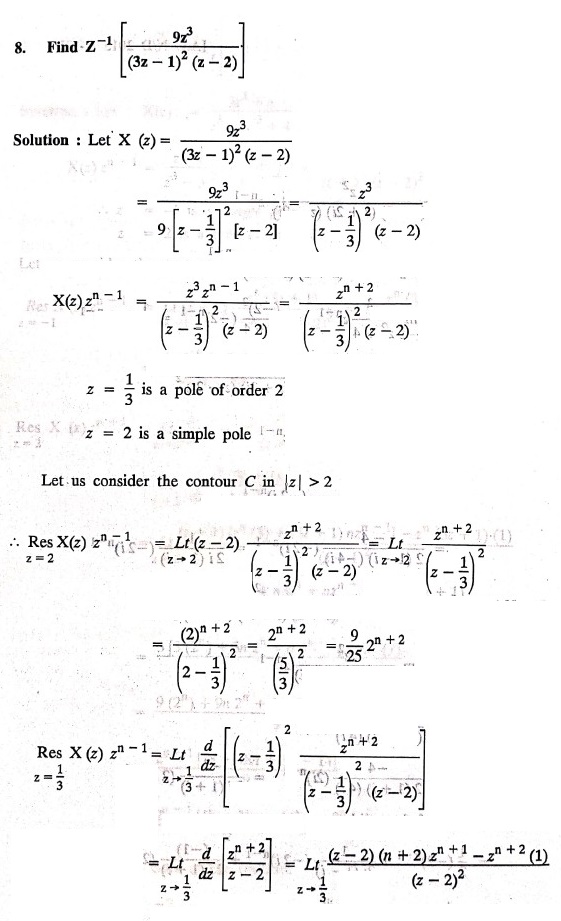

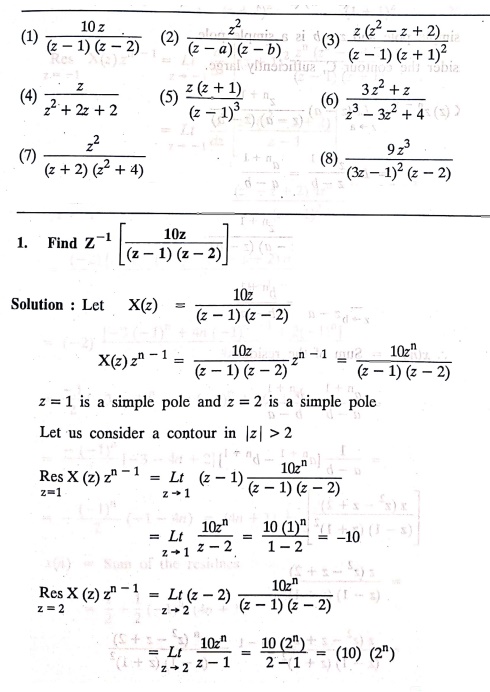

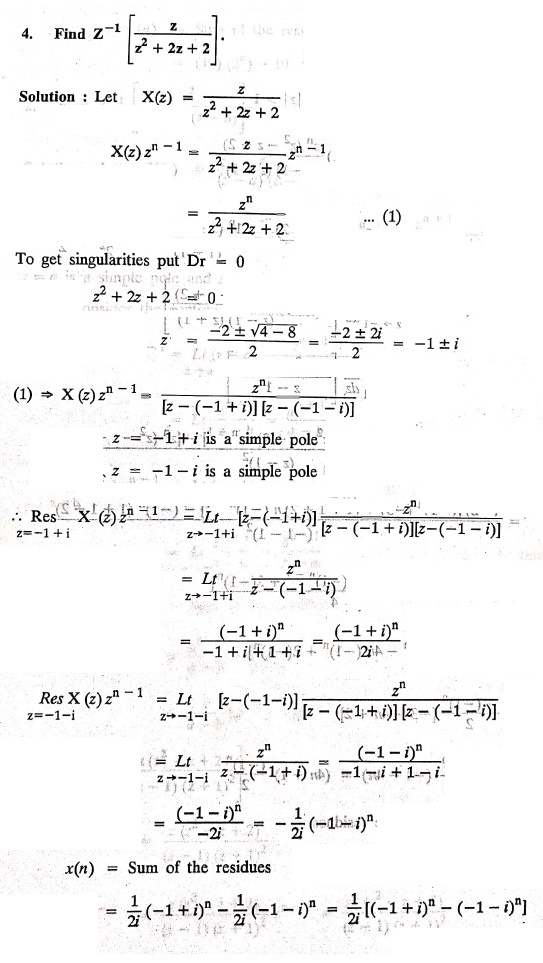

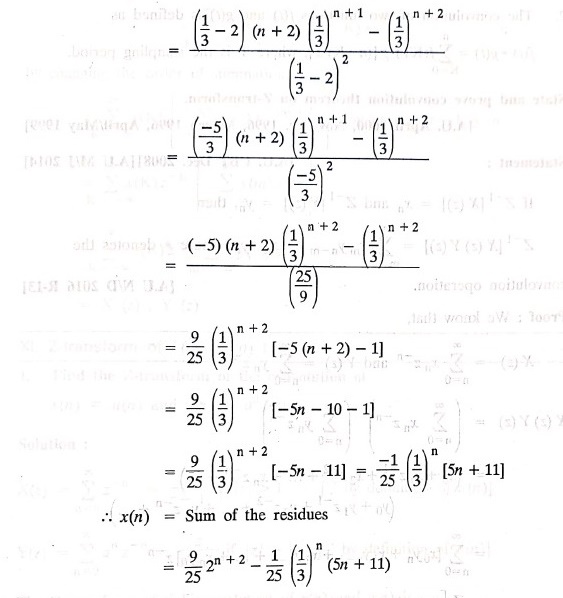

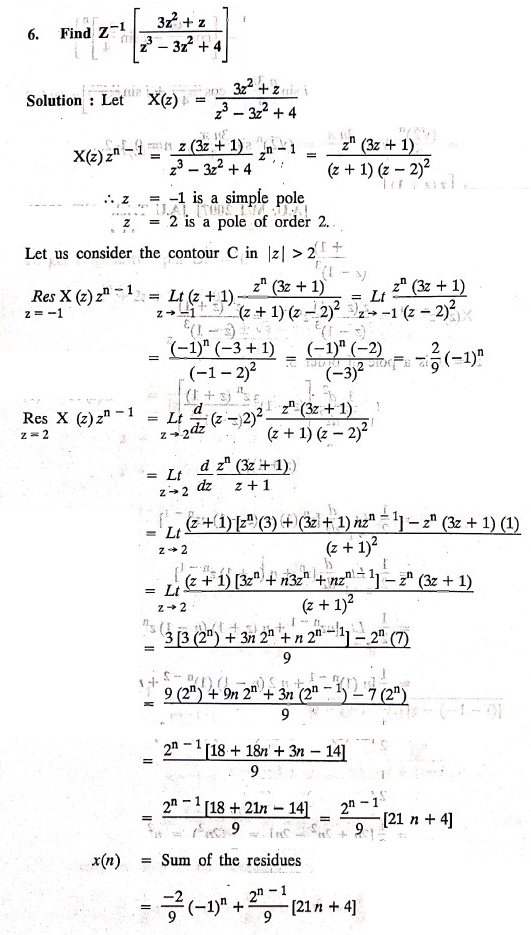

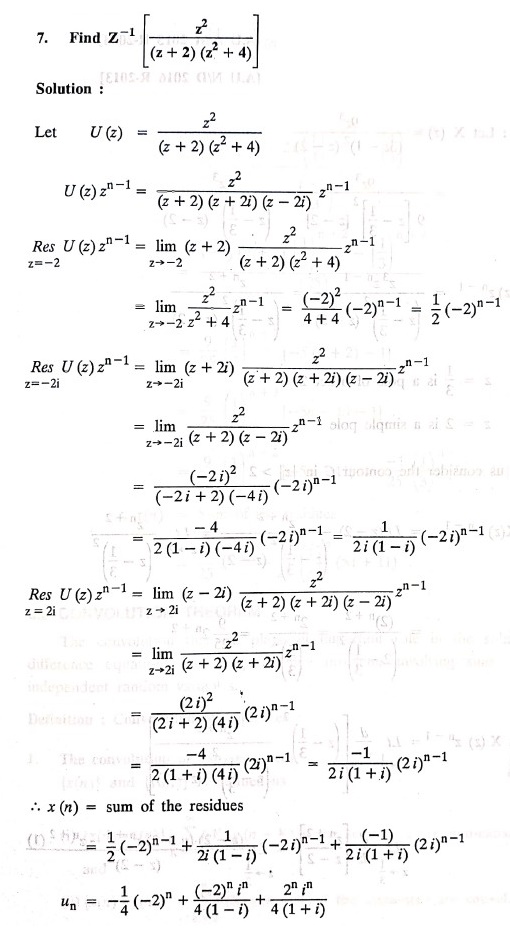

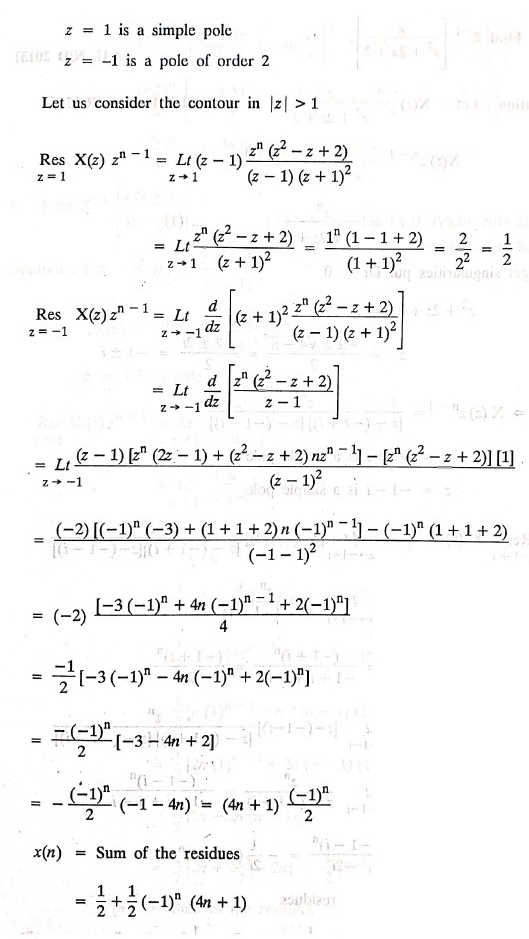

Find the inverse Z‒transform of
