Z Transform: Definition and Example Important Solved Problems with formula, steps, derivation and answer based on Z‒transform of some basic functions.

Z ‒ transform of standard functions, elementary properties of Z ‒ transform

Z transform

Definition: Z ‒ transform (two‒sided or bilateral)

Let {x (n)} be a sequence defined for all integers then its Z‒transform is defined to be

Z {x (n)} = X (z) = ^∞Σ_n=-_∞ x (n) z^‒n

where z is an arbitrary complex number.

Definition: Z ‒ transform (one‒sided or unilateral)

Let {x (n)} be a sequence defined for n = 0, 1, 2, … and x (n) = 0 for n < 0, then its Z ‒ transform is defined to be

where z is an arbitrary complex number.

Definition: Z ‒ transform for discrete values of t

If f(t) is a function defined for discrete values of t where t = nT, n = 0, 1, 2, 3, …. T being the sampling period, then Z - transform of f(t) is defined as

Note:

1. Mostly we study one‒sided Z‒transform

2. If f(t) given, then replace 't' by 'n T'

3. The double braces {} are used for a sequence.

Sometimes we use [ ] or ().

Problems based on Z‒transform of some basic functions

Find the Z‒transform of the following functions:

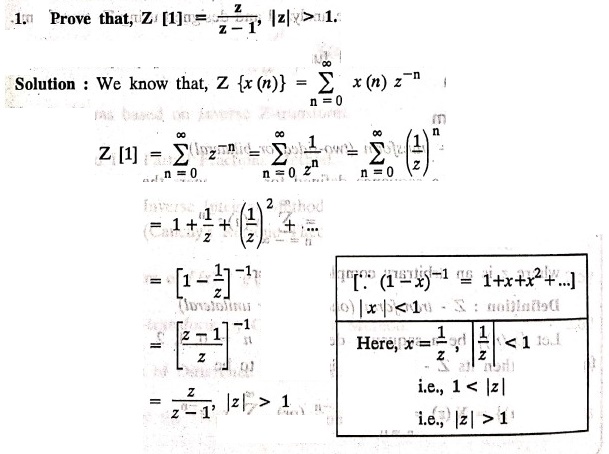

1. 1

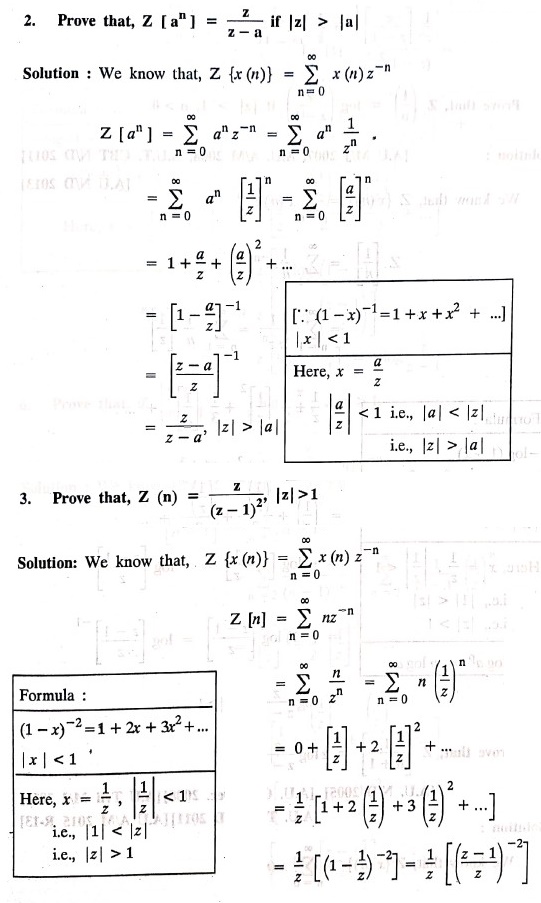

2. aⁿ

3. n

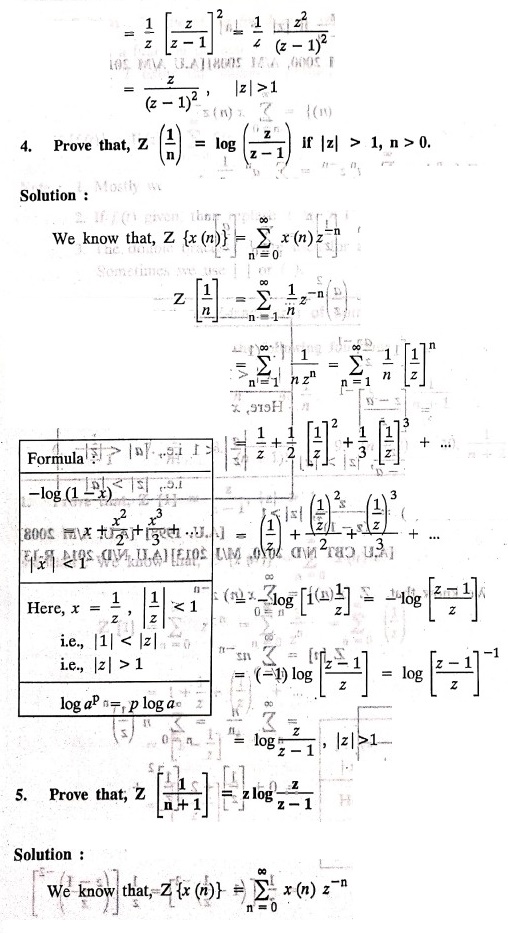

4. 1/n

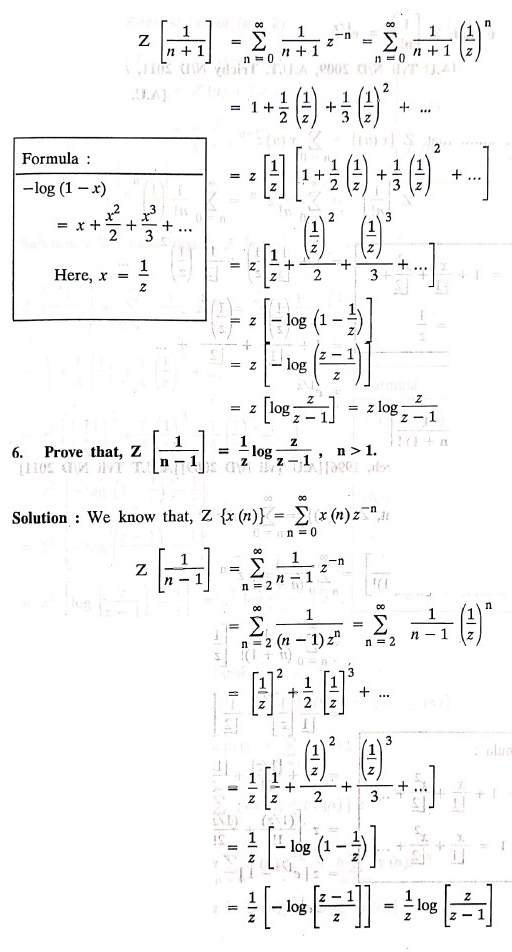

5. 1/ n+1

6. 1/ n‒1

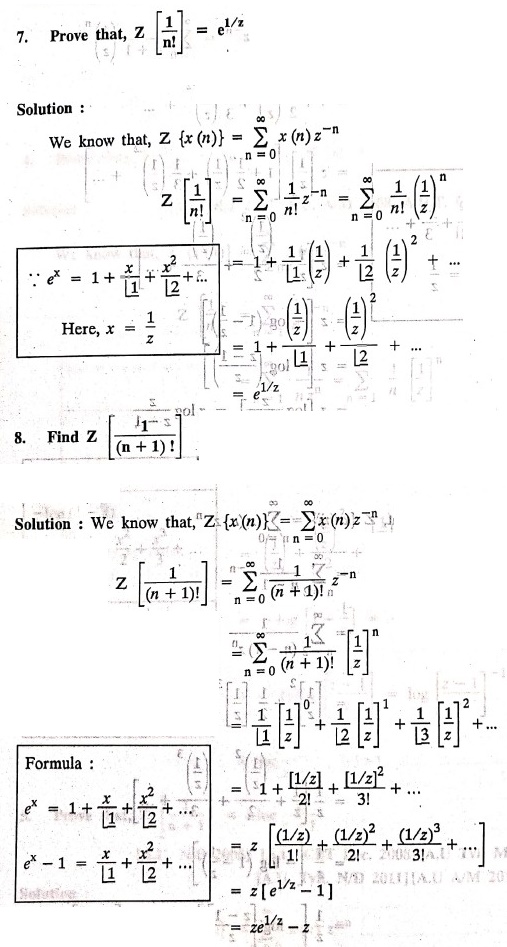

7. 1/ n!

8. 1/(n+1)!

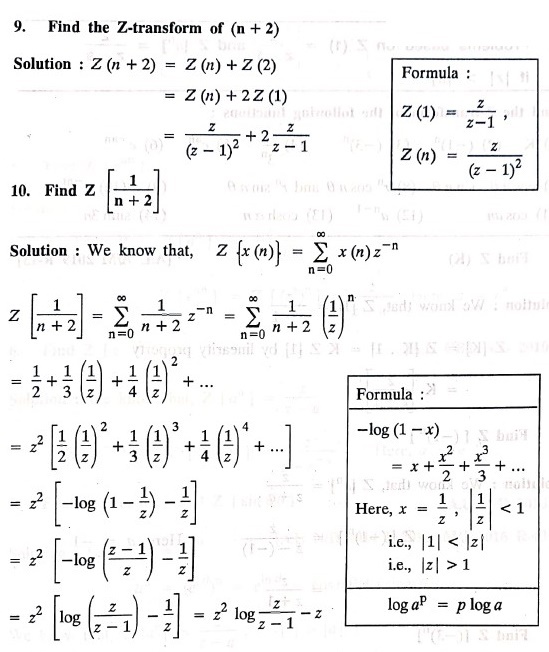

9. (n+2)

10. 1/(n+2)
