Transforms and its Applications: UNIT 2: Z Transform

Z Transform: Differentiation

Home | Department: EEE Department | Ist Year | Subject: Transforms and its Applications |

Z Transform: Example Important Solved Problems with formula, steps, derivation and answer based on Z Transform - Differentiation.

Differentiation

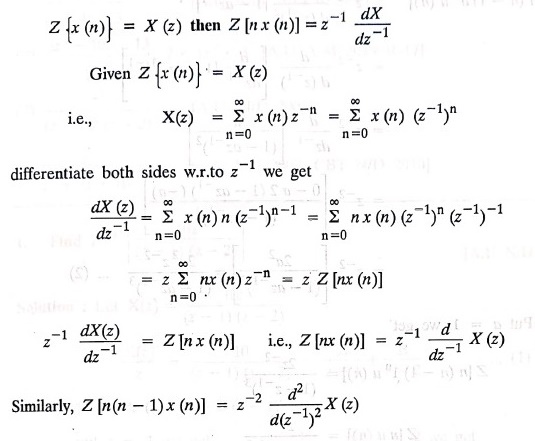

If Z[nx(n)] = z⁻¹ dX(z)/dz^‒1 and

Z [n (n‒1)x (n)] = z^‒2 d²/d(z⁻¹)² X(z)

Problems based on Z[nx(n)] = z⁻¹ dX(z)/dz^‒1 and

Z [n (n‒1)x (n)] = z^‒2 d²/d(z⁻¹)² X(z)

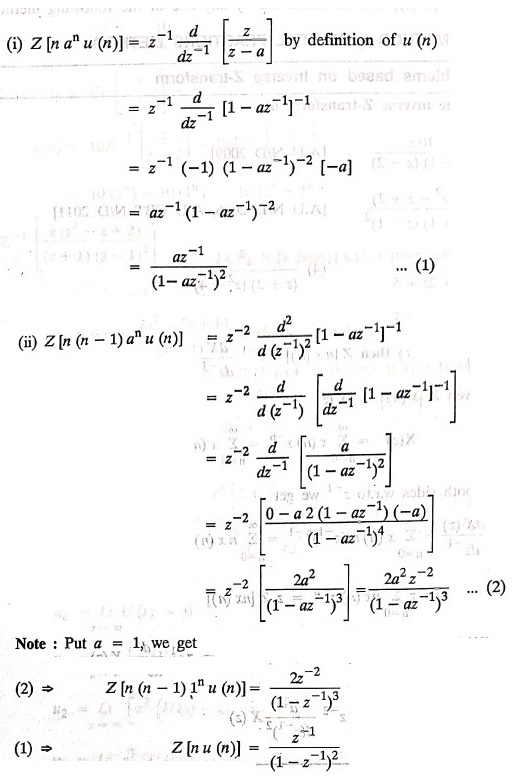

Find the Z-transform of (i) naⁿu(n) (ii) n(n-1) aⁿu(n)

Solution:
