Union

UNION

A union is a collection of variables of different types, just like a structure. However, with unions, you can only store information in one field at any one time.

You can picture a union as like a chunk of memory that is used to store variables of different types. Once a new value is assigned to a field, the existing data is wiped over with the new data.

A union can also be viewed as a variable type that can contain many different variables like a structure, but only actually holds one of them at a time not like a structure. This can save memory if you have a group of data where only one of the types is used at a time. The size of a union is equal to the size of its largest data member. In other words, the C compiler allocates just enough space for the largest member. This is because only one member can be used at a time, so the size of the largest, is the most you will need.

Union is a derived data type and it is declared like structure. The difference between union and structure is in terms of storage. In structure each member has its own storage location, whereas all the members of union use the same location, although a union may contain many members of different types. When we use union the compiler allocates a piece of storage that is large enough to hold. Like structures, union is also declared by using the keyword union. Syntax:

union union_name

{

      union member1;

      union member2;

      …………

      union membern;

};

union union variable;

Example:

union result

{

      int marks;

      float avg;

      char grade;

}std;

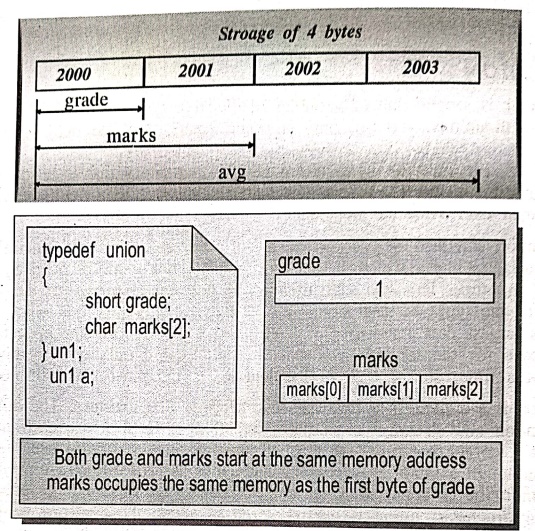

The example shows above declares std of type union results, this contains three union members each different type. However, only one member can be used at a time, since one location is allocated for union variable without considering its size.

Example 1: Program to union global declarations.

/* Program using union */

/* Global declarations */

#include <stdio.h>

union name

{

int a;

char b[2];

};

main()

{

/* Local definitions */

union name c;

c.a=256;

printf("c.a value is %d\n", c.a);

printf("c.b[0] value is %d\n",c.b[0]);

printf("c.b[1] value is %d\n", c.b[1]);

}

OUTPUT

c.a value ....256

c.b[0] value ....0

c.b[1] value ....1

EXPLANATION: In the above program the union is declared as union name name. c is a variable to union name. c.a is initialised as 256. Then prints the c.a and location of c.b[0], c.b[1] as output.

Example 2: Program to find size of union and number of bytes reserved for it.

/* Program_to find size of union and number of bytes */

#include <stdio.h>

void main()

{

union result /* result is a union with elements */

{

         int marks;

         char grade;

};

struct res /* res is a structure with elements */

{

         char name[15];

         int age;

         char sex;

         char address;

         int pincode;

         union result perf;

}

/* Statements */

clrscr();

printf("Size of Union: %d\n",sizeof(data.perf));

printf("Size of Structure: %d\n",sizeof(data));

getch();

} /* main */

OUTPUT

Size of Union : 2

Size of Structure : 23

EXPLANATION: The above program refers to fine size of union and size of structure. The union is declared with name 'result'. The structure is declared with name 'res', within the structure the declared union 'result' is accessed through variable 'perf'. Prints the size of union ‘sizeof(data.perf)' and prints the size of structure using 'sizeof(data)' functions.

Example 3: Program to demonstration on pointer to unions.

/* Program to demonstration on pointer to unions */

#include <stdio.h>

#include <conio.h>

typedef union

{

          int num;

          char *chr;

          float dec;

}rec;

int main()

{

       /* Local definition */

       rec uniondata; /* declare union of the rec type */

       rec *ptr;           /* &union pointer of the rec type */

       ptr =&uniondata;      /* now point to the first union*/

       uniondata.num = 10;

       printf("The union value is now: %d\n", ptr‒> num);

       uniondata. chr = "ten";

       printf("The union value is now: %s\n",ptr‒> chr);

       uniondata.dec 0.250;

       printf("The union value is now: %f\n",ptr‒> dec);

       return 0;

} /* main */

OUT PUT

The union value is now: 10

The union value is now: ten

The union value is now: 0.250000

EXPLANATION: This program defines a union type that contains an int, char or float value. A union and a pointer are declared, then various values are assigned to the union. Each one is assigned to the regular union then retrieved by the pointer, using the arrow operator.



COMPARISON OF STRUCTURE AND UNION

Difference between union and structure Though unions are similar to structure in so many ways, the difference between them is crucial to understand. This can be demonstrated by this example:

#include <stdio.h>

union job      /*defining a union */

{

       int empno;

       char name[80];

       floatsalary;

}u;

struct jobl

{

       int empno;

       char name[80];

       float salary;

}s;

int main()

{

       printf("size of union = %d",sizeof(u));

       printf("\nsize of structure = %d", sizeof(s));

       return 0;

}

OUTPUT

size of union = 80

size of structure = 86

The structure and union are compared as follows:

Structure

• Every member has its own memory space.

• Keyword struct is used.

• Any member can be accessed at any time without the loss of data.

• More storage space is required.

• It can handle all the members or a few as required at a time.

• It may be initialized with all its members.

• Different interpretation for the same memory location is not possible.

Union

• All the members use the same memory space to store the values.

• Keyword union is used.

• Different interpretations for the same memory location are possible.

• It can handle only one member at a time, even all the members use the same space.

• Only its first members may be initialized.

• Conversion of memory is possible.



3. USER DEFINED DATA TYPES - TYPEDEF

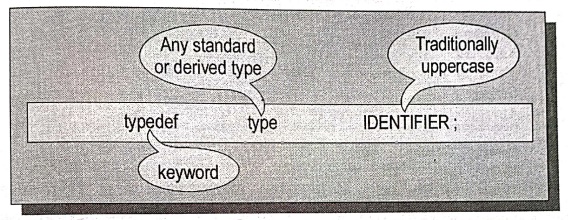

  'C' provides a capability that enables the programmer to assign an alternate name to a data type. This is done with a statement known as typedef.

It is a declaration with typedef as the storage class. The declarator becomes a new type. We can use typedef declarations to construct shorter or more meaningful names for the date types, which were already defined by C, or for types that we have declared, typedef names allow us to encapsulate implementation details that may change.

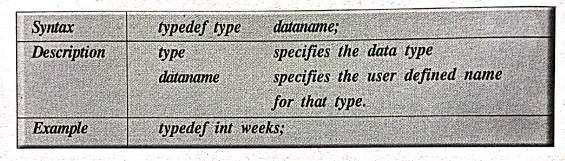

A typedef declaration is interpreted in the same way as a variable or function declaration, but the identifier, instead of assuming the type specified by the declaration, becomes a synonym for the type.

Here weeks is another name for int and now we can use weeks instead of int in the program as follows.

Example: weeks wk;

Example: Program to create user defined data type weeks on int data type and used it in the program.

/* Program to create user defined data type and use it in the program */

#include <stdio.h>

#include <conio.h>

#define D 7

void main()

{

/* Local definitions */

typedef int weeks;

weeks wk;

/* Statements */

clrscr();

printf("Enter weeks: ");

scanf("%d",&wk);

printf("Number of days = %d", wk*D);

getch();

} /* main */

OUTPUT

Enter weeks: 4

Number of days = 28

EXPLANATION: In the above program with typedef we have declared weeks as an integer datatype. Immediately, after the typedef statement wk is a variable of weeks datatype which is similar to int. The program calculate days using wk variable.

Particularly, the typedef feature is convenient when definining structures, since it eliminates the need to repeatedly write struct tag whenever a structure is referenced, so the structure can be referenced more concisely.



Example: Program to create user‒defined datatype from structure.

/* Program to create user‒defined datatye */

#include<stdio.h>

#include<conio.h>

void main()

{

/* Local definitions */

typedef struct

{

         char name[20];

         char gender[2];

         int age;

}rec;

rec candidate[2];

int a;

/* Statement */

clrscr();

for(a=0;a<2;a++)

{

         printf("Name of the Employee: ");

         scanf("%s", candidate[a].name);

         printf("Gender: ");

         scanf("%s", candidate[a].gender);

         printf("Age: ");

         scanf("%d", &candidate[a].age);

}

printf("\nName\t Gender\t Age\n");

for(a=0;a<2;a++)

{

         printf("%s\t", candidate[a].name);

         printf("%s\t", candidate[a].gender);

         printf("%d\n", candidate[a].age);

}

getch();

} /* main */

OUTPUT

Name of the Employee: Mahi

Gender: m

Age: 20

Name of the Employee: Suma

Gender: f

Age: 25

Name     Gender     Age

Mahi      m            20

Suma     f              25

EXPLANATION: In the above program, user‒defined data type rec is created using typedef statement. The rec datatype consists of two character and one integer field. An array candidate[2] is declared based on rec datatype. The first for loop and scanf() statement reads data. The second for loop and printf() statement prints the content of array element.
