Proximity Switches

PROXIMITY SWITCHES

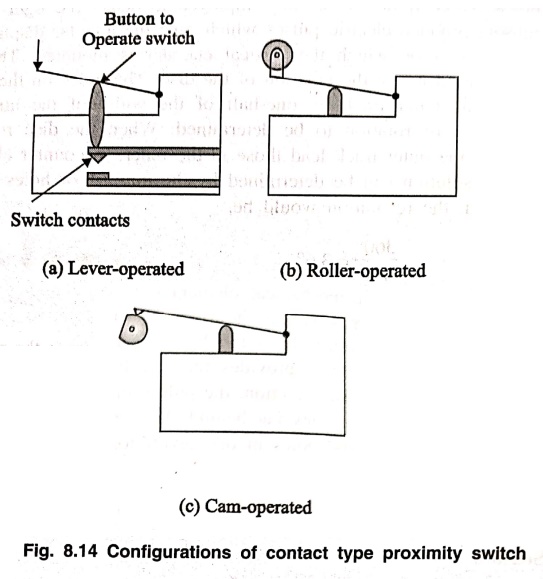

Contact‒type proximity switches being used in manufacturing automation. These are small electrical switches which require physical contact and a small operating force to close the contacts. They are basically employed on conveyor systems to detect the presence of an item on the conveyor belt.

Reed Switch

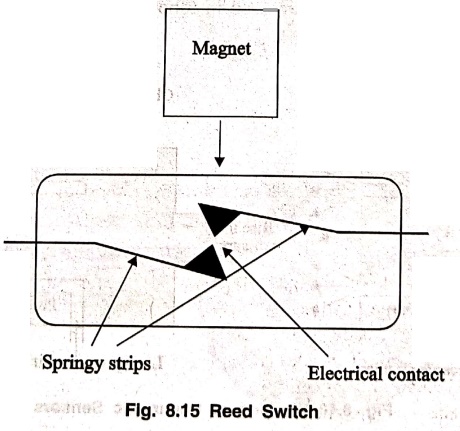

Magnet based Reed switches are used as proximity switches. When a magnet attached to an object brought close to the switch, the magnetic reeds attract to each other and close the switch contacts. A schematic is shown in Figure 8.15.

LED based proximity sensors

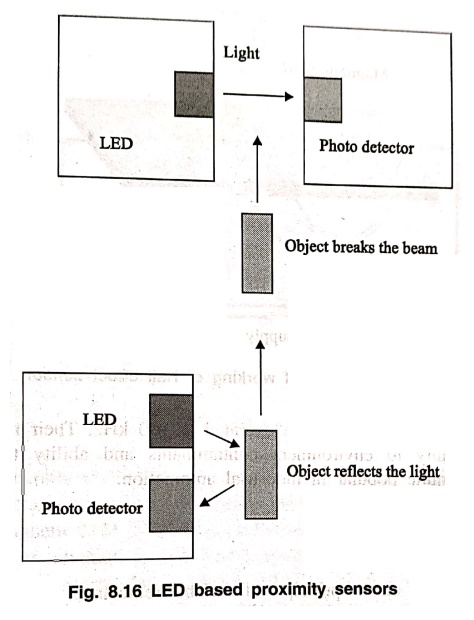

Photo emitting devices such as Light emitting diodes (LEDs) and photosensitive devices such as photo diodes and photo transistors are used in combination to work as proximity sensing devices. Figure 8.16 shows two typical arrangements of LEDs and photo diodes to detect the objects breaking the beam and reflecting light.

Hall effect sensor

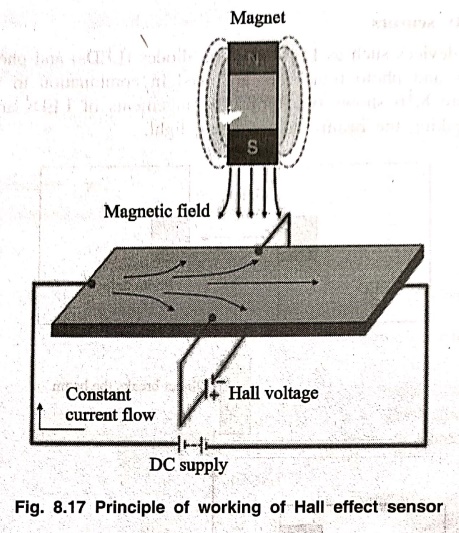

Hall effect sensors work on the principle that when a beam of charge particles passes through a magnetic field, forces act on the current beam is deflected from its straight line path. Thus one side of the disc will become negatively charged and the other side will be of positive charge. This charge separation generates a potential difference which is the measure of distance of magnetic field from the disc carrying current. The typical application of Hall effect sensor is the measurement of fluid level in a container. The container comprises of a float with a permanent magnet attached at it stop. An electric circuit with a current carrying disc is mounted in the casing. When the fluid level increases, the magnet will come close to the disc and a potential difference generates. This voltage triggers a switch to stop the fluid to come inside the container. These sensors are used for the measurement of displacement and the detection of position of an object. Hall effect sensors need necessary signal conditioning circuitry.

They can be operated at 100 kHz. Their non‒contact nature of operation, good immunity to environment contaminants and ability to sustain in severe conditions make them quite popular in industrial automation.
