Optical fiber is made up of transparent dielectrics, (glass or plastics).

STRUCTURE OF AN OPTICAL FIBER

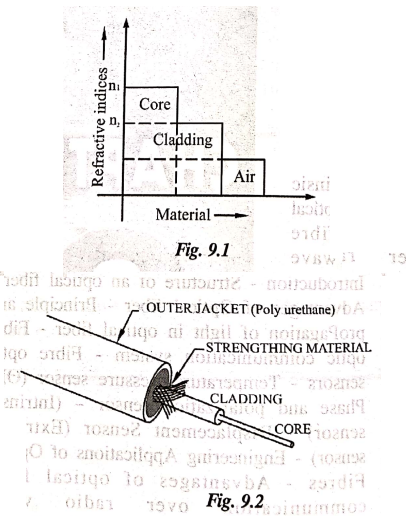

Optical fiber is made up of transparent dielectrics (SiO₂), (glass or plastics). An optical fiber consists of a central core glass (50 μm dia) surrounded by a cladding (125‒200 μm) which is of slightly lower refractive index than core as shown in Fig.9.1.

The cladding is enclosed by strength members (Kevlar) and polyurethane jacket, which acts as protective skin, for core and cladding, as shown in Fig.9.2, the protective layer is used so as to make the optical cable to withstand for hard pulling, bending, sketching, rolling etc. The layer also traps the escaping light from the core.
