Operator Overloading

Overloading

The overloading is a most important feature of object oriented programming. This feature enhances the capability of the method by allowing it to define it for different types of data.

Normally there are two types of overloading used in C++ ‒

1. Operator overloading

2. Function overloading

Operator Overloading

• Operator overloading is confusing even for excellent programmer but it is a strong feature of C++ if you could master it. The operators are used in mathematical expressions like

c=a+b;

area=3.14*r*r;

• It would be very nice if we could use these operators in our own objects. That means the string class can use to concatenate two strings. That also means operators can be programmed to whatever we wish to do with them.

• Definition : Operator overloading in C++ is a feature that allows you to redefine the behavior of built‒in operators (such as +, ‒, = =, <<, etc.) so that they can work with user‒defined data types (objects) just like they work with basic types.

• Various types of operators are ‒

о Mathematical operators such as +  ‒  *  /  ++

о Relational operators such as < >  = =

о Logical operators such as &&   | |

о Access operators [ ] ‒>

о Assignment operator =

о Stream I/O operators <<  >>

о Type conversion operators and several others.

• All of these operators have a predefined and unchangeable meaning for the built‒in types. All of these operators can be given a specific interpretation for different classes or combination of classes. C++ provides the flexibility to the programmers in extending these built‒in operators.

How to overload operator ?

Define a function with keyword operator. Then write the operator (such as +, [ ] or any other valid operator) as a function name. That means we can program that specific operator.

Restrictions on use of operators

• It's not possible to change an operator's precedence.

• It's not possible to create new operators, For example ^ which is used in some languages for exponentiation,

• You can not redefine ::, sizeof, ?:, or. (dot).

• =, [ ], and ‒> must be member functions if they are overloaded.

• ++ and ‒ ‒ need special treatment because they are prefix or postfix operators.

• Assignment ( = ) should always be overloaded if an object dynamically allocates memory.

It can not change the number of required operands(unary, binary, ternary).

• Overloaded operator must be either,

о  Non static member function of class or

о  At least one parameter should be class or enumeration.

Makes no assumptions about similar operators. For example, the fact that you overloaded + does not mean that you have also defined += for your class type.

1. Need of Operator Overloading

• There are predefined operators such as +, ‒ , *, / and so on which operate on the fundamental data types such as integer, double, char and so on. In order to make the user defined data type as natural as fundamental data type, the user defined data types can be associated with the set of predefined operators the concept called operator overloading is used. Note that the fundamental meaning of these operators is not at all changed by operator overloading. Rather, with this meaning these operators are associated with the user defined data types. For instance ‒ If we want to perform the operations on two complex numbers then with the help of operator overloading the operations such as addition, multiplication and so on can be carried out. In this case the class for Complex number is created.



2. Rules for Operator Overloading

1. Only existing operators can be overloaded.

2. The basic meaning of the operator can not be changed.

3. Overloaded operators must follow the syntax of original operator. For example for binary operator operand1 operator operand2 is the syntax and this can not be changed during overloading.

4. Overloaded operators must have at least one operand that is of user defined type.

5. Binary arithmetic operators(+, ‒, * and /) must return a value.

6. When binary operators overloaded through a member function, the left hand operand must be an object of relevant class.

7. Binary operators overloaded through a member function must take one explicit argument.

8. Binary operators overloaded through friend function takes two arguments.

9. Unary operators overloaded through a member function must take no explicit argument and no return value.

10. Unary operators overloaded through friend function takes one explicit argument.

11. There are some operators that can not be overloaded.



3. Overloading Unary Operator

• The unary operators require only one operand. In C++ the unary operators are ‒, +, !, ~, & and *.

• It can be declared as member functions taking no arguments. That means for any operator ‒, ‒ obj is interpreted as obj.operator‒()

• It can be declared as non member functions taking one argument that must be the variable of class type (i.e. Object) or reference. That means, for any operator the ‒ obj is interpreted as operator‒(obj).

If both types of definitions are present then, the function declared as member takes the precedence.

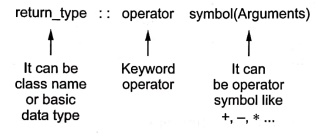

Syntax: The function definition for operator function is as follows ‒

Example :

Point: operator ‒ ()

{

}

Following program illustrates the operator overloading of an unary operator !.

/***************************************************************************

Program for overloading! operator. The overloading function can be a member or a non member function.

***************************************************************************/

#include <iostream>

using namespace std;

class X

{

};

void operatorl(X) //Defined operator overloading function as a non‒member function

{

   cout<<"We are using operator!(X)" << endl;

}

class Y

{

public:

void operatorl() // Defined operator overloading function as a member function

{

   cout<<"we are using Y::operator!()"<<endl;

}

};

int main()

{

   X obj_x;

   Y obj_y;

   lobj_x; //invoking the non member function

   lobj_y; //invoking the member function

   return 0;

}

Output

We are using operator!(X)

we are using Y::operator!()

Program explanation:

In above example the operator function is ‒

• A non‒member function with only one argument or

• A member function with no argument.

• When there is an argument passed to a non‒member function (like for class X) this argument is usually object of a class or reference to object of a class. The operator function call !obj_x will be interpreted as operator!(x) and call to !obj_y will be interpreted as Y.operator!()

Example: 2

Write a C++ program for overloading a unary minus operator.

Solution:

/***************************************************************************

Program for overloading an unary minus operator

**************************************************************************/

#include <iostream>

using namespace std;

class point

{

private:

   int x, y; // co‒ordinate values

public:

   point( ) { x = 0; y = 0; }//constructor

   point(int i, int j) { x = i; y = j; } //constructor

   void get_xy(int &i, int &j) { i = x; j = y; }

   point operator‒(); // operator overload for unary

                             // minus

};

point point::operator‒( )

{

   x = ‒ x;

   y = ‒ y;

   return *this; // Use of this pointer

}

int main()

{

   point obj(10, 10);

   int x, y;

   clrscr();

   obj.get xy(x, y);

   obj = ‒ obj;       Negation calls operator ‒ ()

    obj.get xy(x, y);

   cout<<"\n The use of unary operator is ..."<endl;

   cout << "X:"<< x << ", Y: " << y;

   return 0;

}

Output

The use of unary operator is ...

X: ‒10 ,  Y:‒10

Program explanation:

Note that in above code the unary minus operator function is overloaded by passing no argument to it.

obj = ‒ obj;

When this statement occurs the call to operator ‒() function is given. Thereby negated values of x and y are obtained.

Example: 3

Write a C++ program for overloading a increment operator ++.

Solution :

#include <iostream>

using namespace std;

class coord

{

private:

   int x, y, // co‒ordinate values

public:

   coord() { x = 0; y = 0; }//constructor for obj

   coord(int i, int j) { x = i; y = j; }//constructor with param

   void get_xy(int &i, int &j) { i = x; j = y; }

   coord operator++();//unary operator overloading

};

// Overload ++ operator for coord class

coord coord::operator++()

{

   x++;

   return *this; //returning the current instance

}

int main()

{

   int x, y;

   cout<<"\n Enter the co‒ordinates x and y ";

   cin>>x>>y;

   coord obj(x,y);

   ++obj;   // Calls coord operator++()

   obj.get_xy(x, y);

   cout<<"The increment operator increments the co‒ordinates as..."<<endl;

   cout << "X: " << x << ", Y: " << y;

   getch();

   return 0;

}

Output

Enter the co‒ordinates x and y 10 20

The increment operator increments the co‒ordinates as...

X: 11, Y: 21



4. Overloading Binary Operator

• It can be declared as member functions taking one argument. That is, for any operator +, x + y is interpreted as x.operator+( y ).

• It can be declared as non‒member functions taking two arguments; one of these must be a variable of the class type or a reference to one. That is, for any operator @ except the assignment operator =, x @ y is interpreted as operator @(x, y). For example x+y is interpreted as operator +(x, y).

• If both kinds of definitions are present, the function declared as member takes precedence.

Examples : Binary plus and & ("bitwise and")

class A {

   A operator+( A&)

   A operator&( A&)

};

C++ Program

#include <iostream>

using namespace std;

class vector {

public:

   int p,q;

   vector() {p=0;q=0;}// constructor without parameters

   vector (int,int);//constructor with parameters

   vector operator + (vector);//definition of operator +

};

vector::vector (int a, int b) {

   p = a;

   q = b;

}

vector vector::operator+ (vector obj)

{

   vector temp;

   temp.p = p + obj.p;

   temp.q = q + obj.q;

   return (temp);

}

int main()

{

   vector a (10,20);

   vector b (1,2);

   vector c;

   c=a+b;

   cout<<"\n The Addition of Two vectors is...";

   cout << c.p<<" and "<<c.q;

   retrun 0;

}

Output

The Addition of Two vectors is...11 and 22

• The vector class is created to store two vectors a(10,20) and b(1,2). The operator + is overloaded and now it will perform (10+1, 20+2) and thereby c.p will hold 11 and c.q will hold 22.

In above example, a constructor with parameters is defined

vector ::vector(int a,int b)

We have also defined another constructor

vector::vector( )

{

   p=0;

   q=0;

}

• We have to explicitly define this initializing constructor because we have already defined one constructor with parameter. Now to create the objects of the class vector we need some initializing constructor.

c=a+b

• As we perform addition the function operator + will be invoked and the addition of one vector (10+1) will be stored in c.p and (20+2) will be stored in c.q. We can replace c=a+b by c=a.operator+(b) because it is one and the same.

Example: 4

Consider fruit basket with number of apples and number of mangoes as data of apples and  members. Overload the '+' operator to add the two objects of this class.

Solution :

#include<iostream>

using namespace std;

class FruitBasket

{

public:

   int NoOfApples;

   int NoOfMangoes;

FruitBasket()

{

   NoOfApples=0;NoOfMangoes=0;

}

FruitBasket(int,int);

Fruit Basket operator+ (FruitBasket);

};

FruitBasket::FruitBasket(int a,int b)

{

   NoOfApples=a;

   NoOfMangoes=b;

}

Fruit Basket FruitBasket::operator +(FruitBasket obj)

{

   Fruit Basket temp;

   temp.NoOfApples=NoOfApples+obj.NoOfApples;

   temp.NoOfMangoes=NoOfMangoes+obj.NoOfMangoes;

   return temp;

}

int main()

{

   Fruit Basket Basket1(100,200);

   Fruit Basket Basket2(400,300);

   FruitBasket Total;

   Total=Basket1+Basket2;

   cout<<"The total Apples are: "<<Total.NoOfApples<<endl;

   cout<<"The total Mangoes are: "<<Total.NoOfMangoes<<endl;

   retrun 0;

}

Output

The total Apples are: 500

The total Mangoes are: 500



5. Overloading using Friend

• The friend functions are not the members of a class, similarly they do not have this pointer. Hence all the operands of the operator must be passed explicitly to the friend operator function.

Example :5

Write a C++ program for overloading the greater than operator using the friend function.

Solution :

/**************************************************************************

Program for overloading the operator > for comparing two values

**************************************************************************/

#include <iostream>

#include <cstring>

using namespace std;

class GreaterOp

{

   int a;

public:

   GreaterOp(){}

   GreaterOp(int x)

   {a=x;}

   friend int operator >(GreaterOp obj1,GreaterOp obj2);

};

int operator >(GreaterOp obj1,GreaterOp obj2)

{

   if(obj1.a>obj2.a)

      return 1;

   else

      return 0;

}

int main()

{

   GreaterOp val1(1);

   GreaterOp val2(10);

   if(val1>val2)

     cout<<"\n The first value is greater than the second";

   else

     cout<<"\n The second value is greater than the first";

   return 0;

}

Output

The second value is greater than the first

6. Overloading of Input Operators << and >>

• In C++ the output operation called insertion makes use of the operator <<. This operator is called insertion operator. Similarly the input operation is called extraction because the data is extracted from the keyboard. It makes use of the operator >>. This operator is called extraction operator.

• These operators can be overloaded to read or print certain object. Following example illustrates this kind of operator overloading.

Example: 6

Define a class with three variables for day, month and year. Overload the operator <<, >> to read and print date object.

Solution :

/************************************************************************

Program for overloading the operators << and >> to read and print date

************************************************************************/

#include <iostream>

#include <cstring>

using namespace std;

class DATE

{

   //three variables for reading day, month and year

   int dd,mm,yy;

public:

   DATE(){}

   friend istream& operator >>(istream &is,DATE &obj);

   friend ostream& operator <<(ostream &os,const DATE &obj);

};

istream& operator >>(istream &is,DATE &obj)

{

   is>>obj.dd;

   is>>obj.mm;

   is>>obj.yy;

   return is;

}

ostream& operator <<(ostream &os,const DATE &obj)

{

   os<<"\nDay: "<<obj.dd<<"\nMonth: "<<obj.mm<<"\nYear: "<<obj.yy;

   return os;

}

int main()

{

   DATE date;

   cout<<"Enter Date as dd mm yyyy: ";

   cin>>date:

   cout<<date;

   return 0;

}

Output

Enter Date as dd mm yyyy: 1 1 2012

Day: 1

Month: 1

Year: 2012



7. Overloading Assignment

• The assignment operator is used for assigning value to a variable. Following C++ program illustrates how to overload an assignment operator.

/***************************************************************************

Program for overloading the assignment Operator

**************************************************************************/

#include <iostream>

using namespace std;

class EqualOp

{

   int a;

   int b;

public:

   EqualOp(int, int);//constructor declared

   void show();

   EqualOp operator= (EqualOp);

};

EqualOp: Equal Op(int x, int y)//constructor defined

{

   a=x;

   b=y;

}

EqualOp EqualOp::operator= (EqualOp ob)//overloading = operator

{

   a=ob.a;

   b=ob.b;

   return *this;//returning object with new values

};

void EqualOp::show()

{

   cout<<"a= "<<<<endl;

   cout<<"b= "<<b<<endl;

}

int main()

{

   cout<<"\tProgram for overloading Assignment operator"<<endl;

   EqualOp obj1(10,20);

   cout<<"The values before ="<<endl;

   obj1.show();

   EqualOp obj2(100,200);

   obj1=obj2;

   cout<<"The values after ="<<endl;

   objl.show();

   return 0;

}

Output

Program for overloading Assignment operator

The values before =

a=10

b= 20

The values after =

a= 100

b= 200



8. Overloading Pointer to Member and Subscript

Overloading ‒> operator

• The ‒> is a pointer operator for accessing the member of the pointer variable. The ‒> returns the pointer to the object of the class on which operator ‒>() depends upon. Following is a simple program which illustrates the overloading of ‒> operator.

#include <iostream>

using namespace std;

class POINTER

{

public:

   int val;

   POINTER *operator‒>()

   {

      return this;

   }

};

int main()

{

   POINTER obj;

   obj‒>val=99;

   cout<<"Value assigned to the object is "<<obj‒>val;

   return 0;

}

Overloading & operator

#include<iostream>

using namespace std;

class TEST {

   int ar[4];

public:

   TEST(int a,int b,int c,int d){

   ar[0]=a;

   ar[1]=b;

   ar[2]=c:

   ar[3]=d;

}

int &operator[](int i)

{

   return ar[i];

}

int main()

{

   TEST obj(10,20,30,40);

   clrscr();

   cout<<"\nFirst element is: "<<obj[0];

   cout<<"\n Second element is: "<<obj[2];

   cout<<"\n Storing new element in an array";

   obj[1]=77;

   cout<<"\n New element at index 1 is: "<<obj[1];

   return 0;

}

9. Overloading new and delete Operators

• The new operator is used to allocate the memory whereas the delete operator is used to deallocate the memory.

For example

int *a;

a=new int[5];

This will create a dynamic array of size 5. The five elements which we can enter in this array are of integer type.

The memory allocated dynamically can be deallocated using the delete operator.

For example ‒

delete [] pointer;

Following program shows the overloading of new and delete operators ‒

/*******************************************************************

This program is for operator overloading of new and delete operators

/********************************************************************/

#include<iostream>

using namespace std;

class DynamicClass

{

   int x, y

public:

DynamicClass()

{

   x = y = 0;

}

void Read Data()

{

   cout<<"\n x: ";

   cin>>x;

   cout<<" y: ";

   cin>>y;

}

void Display_Data()

{

   cout << x << " ";

   cout << y << endl;

}

void *operator new[](size_t size);

void operator delete[](void *p);

};

// new operator overloaded for arrays.

void *DynamicClass::operator new[](size_t size)

{

   void *p;

   cout<<"Allocating memory using overload new[].\n";

   p = new int[size];

   return p;

}

// delete operator overloaded for arrays.

void DynamicClass::operator delete[](void *p)

{

   cout << "Freeing array using overloaded delete[]\n";

   delete(p);

}

void main()

{

   DynamicClass *obj;

   int i;

   obj new DynamicClass[3];                   // allocate an array using new

   cout<<"\nEnter the three pairs of values"<<endl;

for(i = 0; i < 3; i++)

{

   obj[i].Read_Data();

}

cout<<"\n You have entered following values..."<<endl;

for(i = 0; i < 3; i++)

obj[i].Display_Data();

delete [] obj;             // delete an array using delete

getch(),

}

Output

Allocating memory using overload new[].

Enter the three pairs of values

x: 10

y: 20

x: 30

y: 40

x: 50

y: 60

You have entered following values...

10 20

30 40

50 60

Freeing array using overloaded delete[]



10. More Examples on Operator Overloading

Example :7

Write a C++ program as follows to perform arithmetic operations on rational numbers of type a/b, where a and b are integers?

i) Define a class by 'Rational Number'.

ii) Use operator overloaded methods for additions and subtraction.

iii) Write a main program to demonstrate the use of this class and its methods.

iv) Give sample output.

Solution :

#include<iostream>

#include<cstdlib>

using namesapce std;

class RationalNumber

{

   int p,q

public:

   RationalNumber (//constructor1

   {

      p=0;

      q=0;

   }

   RationalNumber (int n,int d)

   {

      p=n,

      q=d;

   }

   void getdata()

   {

      cout<<"\nEnter the numerator":

      cin>>p;

      cout<<"\nEnter the denomenator";

      cin>>q;

   }

   void display()

   {

      cout<<"The result = "<<p<<"/"<<q;

   }

   friend RationalNumber operator+(RationalNumber &ob1, RationalNumber &ob2);

   friend RationalNumber operator ‒ (RationalNumber &ob1, RationalNumber &ob2);

};

RationalNumber operator +(RationalNumber &ob1, RationalNumber &ob2)

{

   RationalNumber temp;

   temp.p=(ob1.p*ob2.q)+(ob1.q*ob2.p);

   temp.q=(ob1.q*ob2.q);

   retum temp;

}

RationalNumber operator ‒ (RationalNumber &ob1, RationalNumber &ob2)

{

   RationalNumber temp;

   temp.p=(ob1.p*ob2.q) ‒ (ob1.q*ob2.p);

   temp.q=(ob1.q*ob2.q);

   return temp;

}

void main()

{

   RationalNumber ob1,ob2,ob3;

   int choice;

   char ans,

   do

   {

      cout<<"\n Main Menu";

      cout<<"\n 1.Addition \n 2.Subtraction";

      cout<<"\n Enter Your Choice":

      cin>>choice;

      switch(choice)

      case 1: cout<<"\nAddition of Two numbers\n";

         cout<<"\n Enter First Rational number";

          ob1.getdata();

          cout<<"\n Enter Second Rational number";

          ob2.getdata();

          ob3‒ob1+ob2;

          ob3.display();

          break;

      case 2: cout<<"\nSubtraction of Two numbers\n";

          cout<<"\n Enter First Rational number"; ob1.getdata();

          cout<<"\n Enter Second Rational number";

          ob2.getdata();

          ob3‒ob1‒ob2;

          ob3.display();

          break;

   }

   cout<<"\nDo You Want To Continue?";

   ans=getche();

   while(ans= ='y' || ans = ='Y');

}

Output

Main Menu

1.Addition

2.Subtraction

Enter Your Choice1

Addition of Two numbers

Enter First Rational number

Enter the numerator1

Enter the denomenator2

Enter Second Rational number

Enter the numerator2

Enter the denomenator5

The result= 9/10

Do You Want To Continue?

Example: 8

Write a C++ program to implement C = A + B, C = A B and C = A*B where A, B and C are objects containing a int value (vector).

OR

Write a C++ program to add two vectors using + operator overloading.

Solution:

#include<iostream>

using namespace std;

class vector

{

public:

   int p

   vector() (p=0;}// constructor without parameters

   vector (int);//constructor with parameters

   swap(&p,&q);

   cout<<"\n After swapping...";

   cout<<"\n a= "<<p<<" b= "<<q;

}

Output

Enter the first number: 10

Enter the second number: 20

Before swapping...

a= 10 b=20

After swapping...

a= 20 b= 10
