Pandas: Merging and Joining Datasets

Merging and Joining Datasets

• Merging and joining the datasets is a core process to start with data analysis and machine learning task. The merging and joining operation brings all the datasets at one place based on certain logic and then start data analysis.

Syntax of merge

pd.merge(left, right, how='inner', on=None, left_on=None, right_on=None, left_index=False, right_index=False, sort=True)

Parameters:

•  left ‒ A DataFrame object.

•  right ‒ Another DataFrame object.

• on‒ Columns (names) to join on. Must be found in both the left and right DataFrame objects.

• left_on ‒ Columns from the left DataFrame to use as keys. Can either be column names or arrays with length equal to the length of the DataFrame.

• right_on ‒ Columns from the right DataFrame to use as keys. Can either be column names or arrays with length equal to the length of the DataFrame.

•  left_index ‒ If True, use the index (row labels) from the left DataFrame as its join key(s). In case of a DataFrame with a MultiIndex (hierarchical), the number of levels must match the number of join keys from the right DataFrame.

•  right_index ‒ Same usage as left_index for the right DataFrame.

• how ‒ One of 'left', 'right', 'outer', 'inner'. Defaults to inner. Each method has been described below.

• sort ‒ Sort the result DataFrame by the join keys in lexicographical order. Defaults to True, setting to False will improve the performance substantially in many cases.

Demo example

• We will consider two datasets of employee information. We will first display these two data sets

import pandas as pd

data1 = pd.DataFrame({

'emp_id':[1,2,3,4,5],

 'name':['AA', 'AB', 'AC', 'AD', 'AE'].

 'dept_id': ['d1', 'd3', 'd6', 'd7', 'd5']}).

data2 = pd.DataFrame({

'emp_id':[1,2,3,4,5],

'name': ['BA', 'BB', 'BC', 'BD', 'BE'],

'dept_id': ['d2', 'd3', 'd4', 'd7', 'd5']})

print(data1)

print(data2)

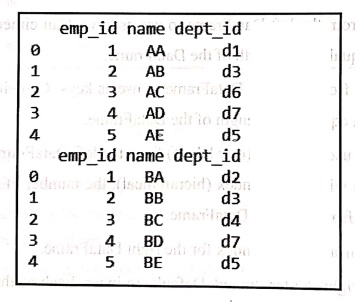

Output

Now using the merge function we will merge two datasets. This merging is based on emp_id. The code for this will be as follows‒

import pandas as pd

data1 = pd.DataFrame({

'emp_id':[1,2,3,4,5],

'name': ['AA', 'Ab', 'Ac', 'AD', 'AE'],

'dept_id':['d1', 'd3', 'd6', 'd7','d5']})

data2 = pd.DataFrame({

'emp_id':[1,2,3,4,5],

'name': ['BA', 'BB', 'BC', 'BD', 'BE'],

'dept_id': ['d2', 'd3', 'd4', 'd7', 'd5']})

print(data1)

print(data2) print("

print("-----------------------------")

print("Merging on Employee ID")

print("-----------------------------")

print(pd.merge(data1, data2,on='emp_id'))

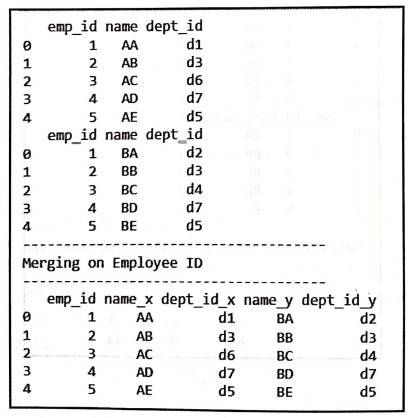

Output

•  In above code we have used merge function. The first two parameters to this function are the two datasets. The third parameter is on which is assigned with the name of the column based on which the merging should take place. We have assigned the emp_id to on parameter. Hence merging of two data sets take place based on emp_id

Merging of datasets using multiple keys

import pandas as pd

data1 = pd.DataFrame({

'emp_id':[1,2,3,4,5],

'name': ['AA', 'AB', 'AC', 'AD', 'AE'],

'dept_id': ['d1', 'd3', 'd6', 'dz', 'd5']})

data2 = pd.DataFrame({

'emp_id':[1,2,3,4,5],

'name':['BA', 'BB', 'BC', 'BD', 'BE'],

dept id': ['d2', 'd3', 'd4', 'd7', 'd5']})

print(data1)

print(data2)

print("-----------------------------")

print("Merging on Employee ID and Department _ID")

print("-----------------------------")

print(pd.merge(data1,data2,on=['emp_id', 'dept_id']))

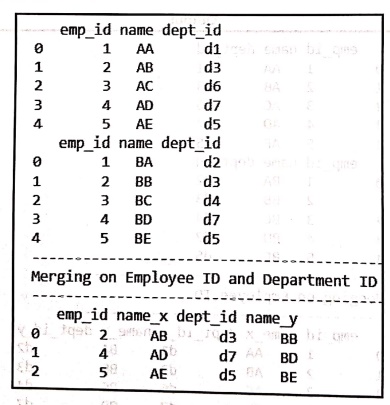

Output

Types of join

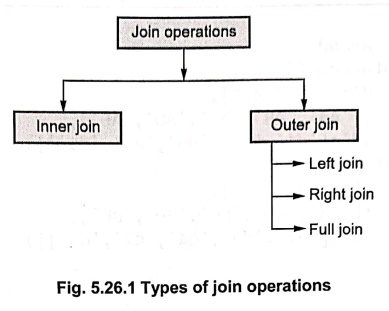

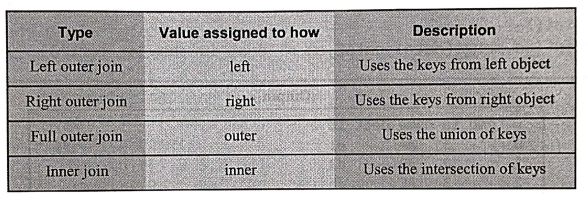

Fig. 5.26.1 Types of join operations

There are four types of joins. These are described as follows ‒

•  For displaying the merged datasets we assign the values to parameter how based on which the join can be left, right, inner or outer.

•  Following are the code samples demonstrating each type of Join

Left outer join

• The LEFT OUTER JOIN returns all rows from the left dataset, even if there are no matches in the right table. This means that if it matches 0 (zero) records in the right table; the join will still return a row in the result, but with NaN in each column from the right table.

This means that a left join returns all the values from the left data set, plus matched values from the right data set or NaN in case of no matching join predicate.

• It can be represented as

The sample code is for implementing the left outer join is as follows ‒

import pandas as pd

data1 = pd.DataFrame({

'emp_id':[1,2,3,4,5],

'name': ['AA', 'AB', 'AC', 'AD', 'AE'],

'dept_id': ['d1', 'd3', 'd6', 'd7', 'd5']})

data2 = pd.DataFrame({

'emp_id':[1,2,3,4,5],

'name': ['BA', 'BB', 'BC', 'BD', 'BE'],

'dept_id': ['d2', 'd3', 'd4', 'd7', 'd5']})

print(data1)

print(data2)

print("----------------")

print(" Left Outer Join")

print("----------------")

print(pd.merge(data1, data2, on = 'dept_id', how = 'left'))

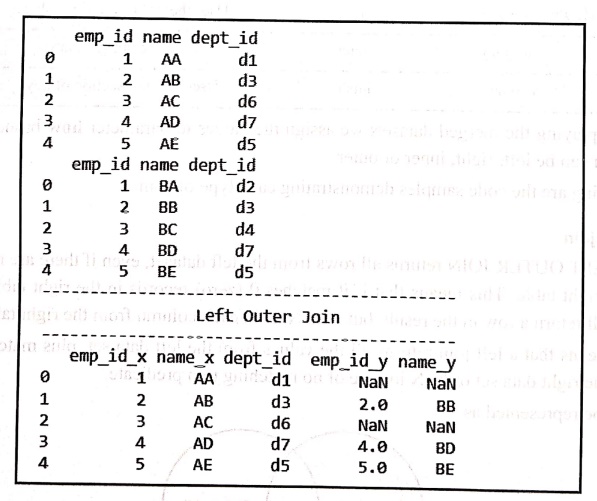

Output

Right outer join

•  The RIGHT OUTER JOIN returns all rows from the right data set, even if there are no matches in the left data set.

• This means that if the it matches 0 (zero) records in the left data set; the join will still return a row in the result, but with NaN in each column from the left data set.

• This means that a right join returns all the values from the right data set, plus matched values from the left data set or NaN in case of no matching join predicate.

•  It can be represented as follows:

The sample code is for implementing the right outer join is as follows ‒

import pandas as pd

data1 = pd.DataFrame({

'emp_id':[1,2,3,4,5],

'name': ['AA', 'AB', 'AC', 'AD', 'AE'],

'dept_id': ['d1', 'dз', 'd6', 'd7', 'd5']})

data2 = pd.DataFrame({

emp_id':[1,2,3,4,5],

name': ['BA', 'BB', 'BC', 'BD', 'BE'],

'dept_id': ['d2', 'd3', 'd4', 'd7', 'd5']})

print(data1)

print(data2)

print("-------------------------------")

print("               Right Outer Join")

print("-------------------------------")

print (pd.merge(data1, data2,on = 'dept_id', how = 'right'))

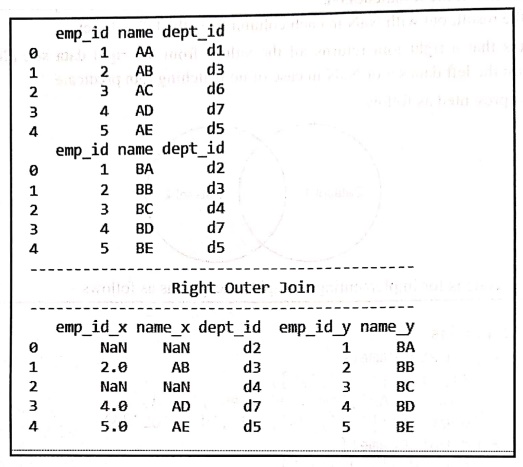

Output



Full outer join

•  The FULL OUTER JOIN combines the results of both left and right outer joins.

•  The joined table will contain all records from both the datasets and fill in NaN for missing matches on either side.

•  It can be represented as,

The sample code is for implementing the full outer join is as follows ‒

import pandas as pd

 data1 = pd.DataFrame({

'emp_id':[1,2,3,4,5],

'name': ['AA', 'AB', 'AC', 'AD', 'AE'],

'dept_id': ['d1', 'dз', 'd6', 'd7', 'd5']})

data2 = pd.DataFrame({

'emp_id':[1,2,3,4,5],

 'name': ['BA', 'BB', 'BC', 'BD', 'BE'],

 'dept_id': ['d2', 'd3', 'd4', 'd7', 'd5']})

print(data1)

print(data2)

print("-----------------------------")

print("         Full Outer Join")

print("-----------------------------")

print(pd.merge(data1, data2, on = 'dept id', how = 'outer'))

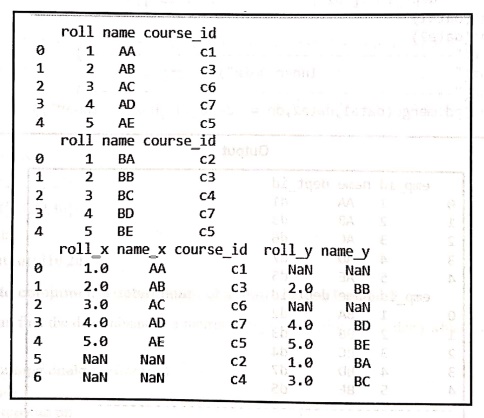

Output



Inner join

•  The most important and frequently used of the joins is the INNER JOIN.

•  The INNER JOIN creates a new resultant data set by combining column values of two data sets based upon the join ‒ predicate (i.e. name of some column).

• The join operation compares each row of first data set with each row of second dataset to find all pairs of rows which satisfy the join ‒ predicate.

• When the join ‒ predicate is satisfied, column values for each matched pair of rows of dataset1 and dataset2 are combined into a result row. It can be represented as :

The sample code is for implementing the inner join is as follows ‒

import pandas as pd

datal = pd.DataFrame({

'emp_id':[1,2,3,4,5],

'name': ['AA', 'AB', 'Ac', 'AD','ÁE'],

'dept_id': ['d1', 'd3', 'd6', 'd7', 'd5']})

data2 = pd.DataFrame({

emp_id':[1,2,3,4,5],

'name': ['BA', 'BB', 'BC', 'BD','BE'],

'dept_id': ['d2', 'd3', d4', 'd7', 'd5']})

print(data1)

print(data2)

print("-------------------")

print("           Inner Join")

print("-------------------")

print(pd.merge(data1, data2,on = 'dept_id',how = 'inner'))

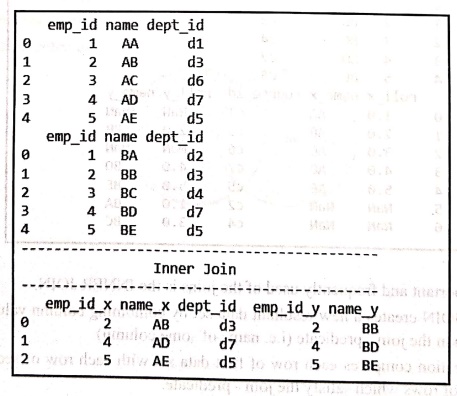

Output



Review Questions

1. Explain how merging of datasets is done using multiple keys?

2.What are different types of join operations in data wrangling process?
