Shift Registers
Sequential Circuit
Question: List the basic types of shift registers in terms of data movement.
Shift Registers
•
The binary information (data) in a register can be moved from stage to stage
within the register or into or out of the register upon application of clock
pulses. This type of bit movement is essential for certain arithmetic and logic
ors operations used in microprocessors. This gives rise to a group of registers
called 'shift registers'. They are
very important in applications involving the storage and transfer of data in a
digital system.
•

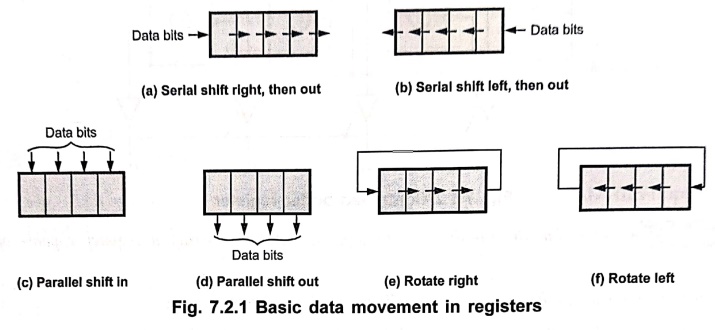

Fig. 7.2.1 gives the symbolical representation of the different types of data
movement in shift register operations.
•
According to the data movement in a register, let us see some of the types of
shift registers.
Review Question
1. List the basic
types of shift registers in terms of data movement.
