Question: 1. Write the logic symbol, expression and truth table for the following logic gates : 1. i) EX-OR ii) NOR 2. i) NAND ii) EX-NOR 3. i) NAND ii) NOR iii) EX-OR

Logic Gates

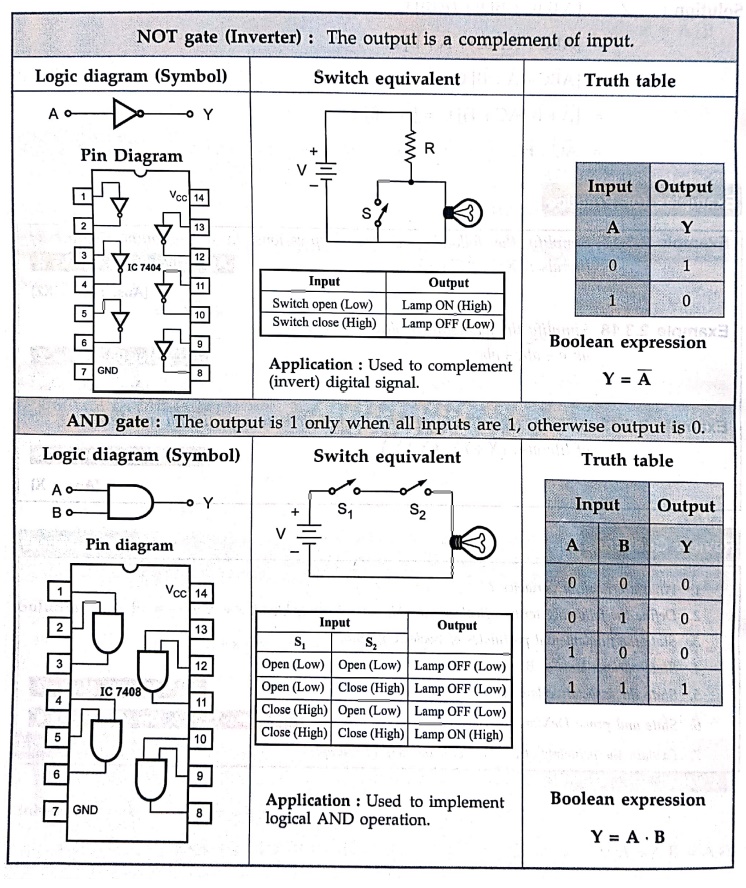

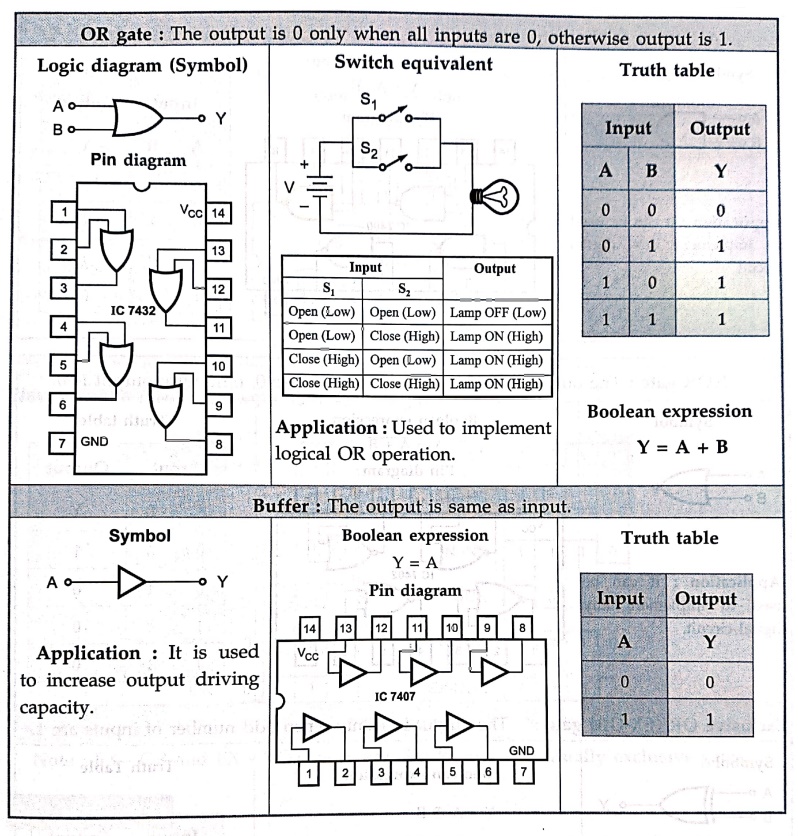

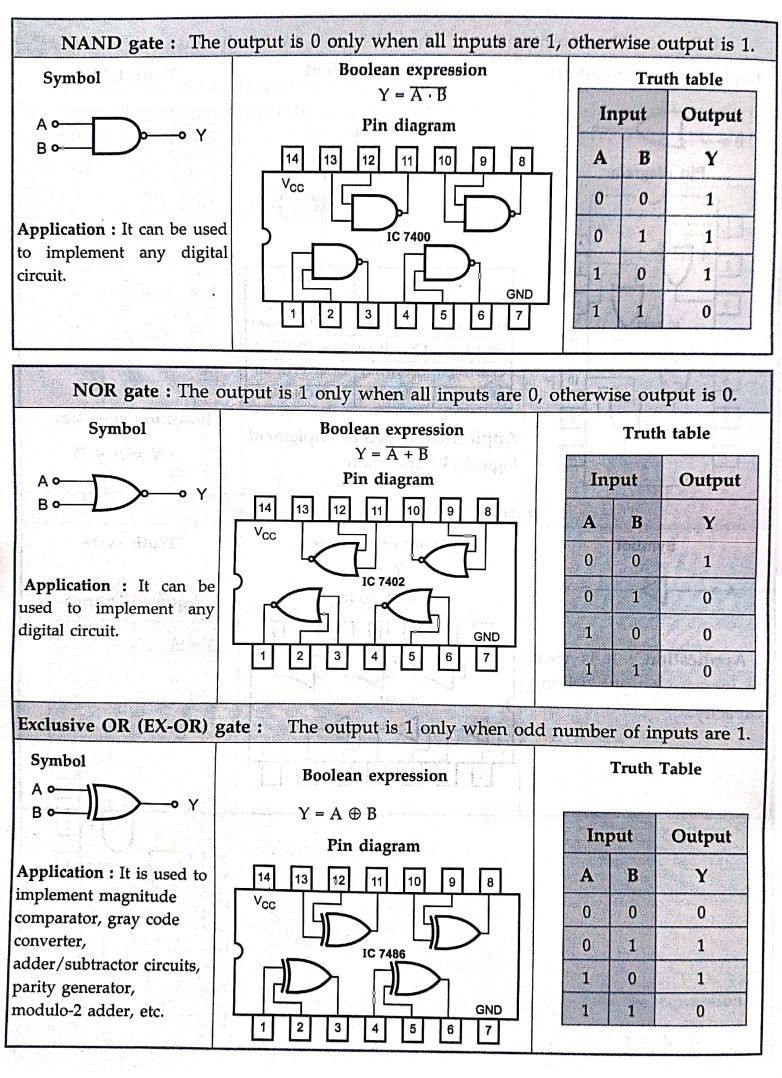

Logic gates are the basic elements that make up a digital system. The electronic gate is a circuit that is able to operate on a number of binary inputs in order to perform a particular logical function. The types of gates available are the NOT, AND, OR, NAND, NOR, exclusive – OR, and the exclusive – NOR.

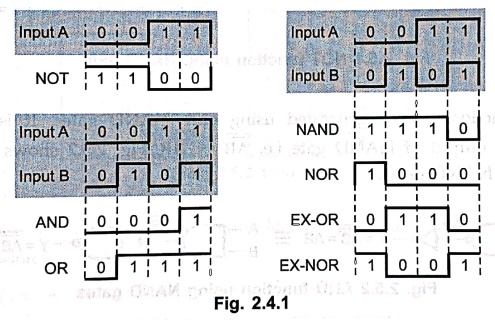

Wave - forms Timing diagrams of all the gates

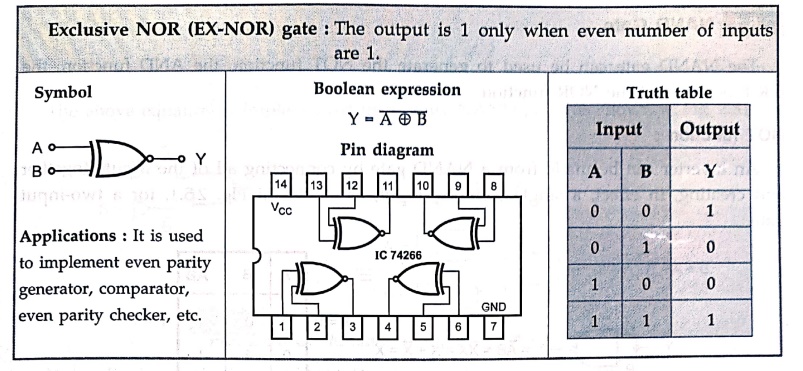

Note : EX– OR and EX – NOR gates are also known as mutually exclusive gates.

Review Question

1. Write the logic symbol, expression and truth table for the following logic gates :

1. i) EX–OR ii) NOR

2. i) NAND ii) EX–NOR

3. i) NAND ii) NOR iii) EX–OR
