CUDA Architecture (Compute Unified Device Architecture)

CUDA Architecture

• CUDA (Compute Unified Device Architecture) is a parallel computing platform and programming model developed by NVIDIA. It enables developers to use NVIDIA GPUs (Graphics Processing Units) for general‒purpose processing, a paradigm known as GPGPU (General‒Purpose computing on Graphics Processing Units).

• CUDA extends programming languages like C, C++ and Fortran with additional constructs, allowing developers to write programs that leverage the massive parallel processing power of GPUs.



1. Features of CUDA

1. Parallel computing capabilities

■ CUDA enables massive parallelism by dividing tasks into thousands of threads, which execute simultaneously on GPU cores.

■ Uses Single Instruction Multiple Thread (SIMT) architecture to efficiently execute parallel operations.

2. Thread hierarchy (Grids, Blocks, Threads, and Warps)

■ CUDA organizes computations into a hierarchical structure for efficient execution :

♦ Threads : Smallest unit of execution.

♦ Blocks : A group of threads that execute together.

♦ Grids : A collection of blocks that make up a complete computation.

♦ Warps : Groups of 32 threads that execute instructions in lockstep.

3. Unified memory model

■ CUDA supports a Unified Memory Model, allowing both CPU and GPU to share memory without explicit data transfer, simplifying memory management.

■ Supports NVIDIA NVLink for high‒bandwidth GPU‒GPU communication.

4. CUDA memory types for optimization

■ CUDA provides different memory types to optimize performance :

♦ Global memory : Large but high‒latency, accessible by all threads.

♦ Shared memory : Faster, shared among threads in a block.

♦ Constant memory : Read‒only memory optimized for frequently used values.

♦ Texture and surface memory : Used for 2D spatially localized data, like images.

5. CPU‒GPU collaboration

■ CUDA enables heterogeneous computing, where the CPU and GPU work together to solve problems. The CPU handles sequential tasks, while the GPU accelerates parallel tasks.

6. Scalability and multi‒GPU support

■ CUDA supports multi‒GPU systems, allowing developers to scale applications across multiple GPUs for even greater performance.

7. CUDA C/C++ programming support

■ CUDA extends C and C++, allowing developers to write GPU‒accelerated code without learning a new language.

■ It also supports Fortran, Python, and Java via libraries like PyCUDA and CUDA Fortran.

8. Highly optimized CUDA libraries

■ NVIDIA provides optimized libraries for various applications:

 ♦ cuBLAS (Linear Algebra)

 ♦ cuDNN (Deep Learning)

 ♦ Thrust (Parallel Algorithms)

 ♦ cuFFT (Fast Fourier Transforms)

 ♦ cuRAND (Random Number Generation)

9. Dynamic parallelism

■ CUDA allows kernels to launch other kernels, enabling recursive parallel execution.

■ Useful for adaptive algorithms, tree‒based computations, and simulations.

10. CUDA streams and asynchronous execution

■ CUDA supports multiple concurrent streams to overlap memory transfers and kernel execution.

■ CUDA supports asynchronous executions, allowing overlap of computation and data transfer for improved performance.

11. Portability

■ Cross‒platform support : CUDA is supported on multiple operating systems, including Windows, Linux, and macOS.

■ Backward compatibility : CUDA programs are compatible with a wide range of NVIDIA GPUs, ensuring portability across different hardware generations.

2. Architecture of CUDA

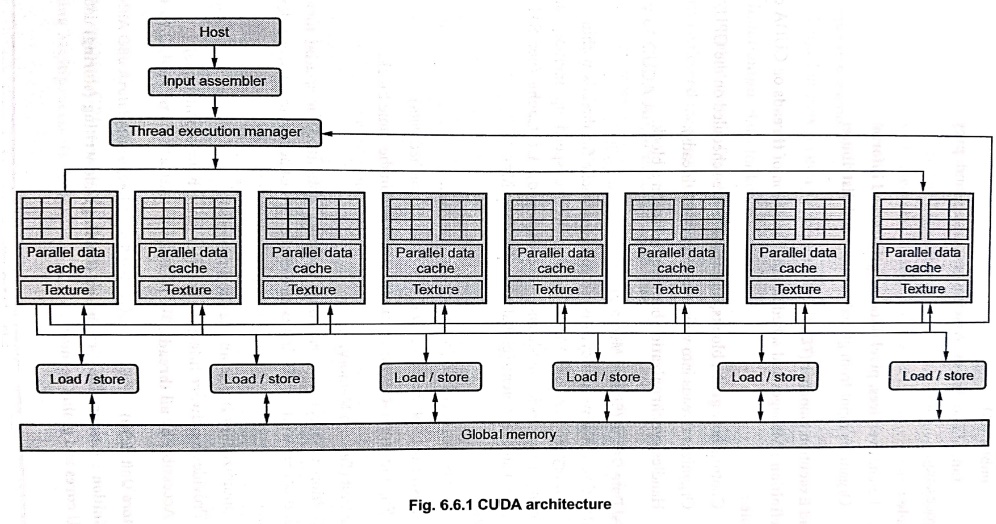

• Fig. 6.6.1 shows CUDA architecture. The core components of CUDA architecture include:

1. Host (CPU)

2. Input Assembler (IA)

3. Thread Execution Manager (TEM)

4. Parallel Data Cache (Shared Memory)

5. Texture Unit (Texture Memory)

6. Load / Store Unit (LSU)

7. Global Memory (Device Memory)

1. Host (CPU)

■ Definition : The Host refers to the CPU and the system memory (RAM) where your program runs.

■ Role:

♦ Manages program control flow.

♦ Allocates memory on both the CPU and GPU.

♦ Launches kernels (functions executed on the GPU).

♦ Transfers data between CPU memory (Host memory) and GPU memory (Device memory).

2. Input Assembler (IA)

■ Definition : The Input Assembler gathers and prepares input data for parallel processing.

■ Role :

♦ Fetches vertices, pixel data, or grid/thread information.

♦ Organizes input from global memory and distributes it to CUDA cores.

3. Thread Execution Manager (TEM)

■ Definition : Manages and schedules the execution of threads on CUDA cores.

■ Role :

♦ Controls how grids, blocks, and threads are scheduled on the GPU.

♦ Organizes threads into warps (groups of 32 threads).

♦ Handles synchronization between threads in a block.

4. Parallel Data Cache (Shared Memory)

■ Definition : A low‒latency, shared memory cache for threads within a block to speed up memory access. CUDA provides caches to speed up memory access: Shared Memory (per block, low‒latency, user‒managed), L1 Cache (per SM, automatically managed) and L2 Cache (global, shared across SMs).

■ Role:

♦ Accelerates access to frequently used data.

♦ Faster than global memory (100x faster for cached data).

♦ Supports inter‒thread communication within the same block.

5. Texture Unit (Texture Memory)

■ Definition : Specialized read‒only memory optimized for spatial locality in 2D/3D data. It comes with a built‒in texture cache for fast access to adjacent elements.

■ Role :

♦ Optimized for image and texture processing.

♦ Provides hardware interpolation (for smooth transformations).

♦ Accessible by all threads.

6. Load/Store Unit (LSU)

■ Definition : Responsible for reading (loading) and writing (storing) data between the GPU cores and global memory.

■ Role:

♦ Handles data transfer between registers, shared memory and global memory.

♦ Global memory is large but has high‒latency, so CUDA optimizes access patterns by supporting coalesced memory access (where consecutive threads access. adjacent memory addresses).

7. Global Memory (Device Memory)

■ Definition : Large but slow memory accessible by all GPU threads.

■ Role :

♦ Stores input/output data for kernels.

♦ Requires explicit transfer from the Host (CPU).

♦ Supports coalesced memory access for better performance.

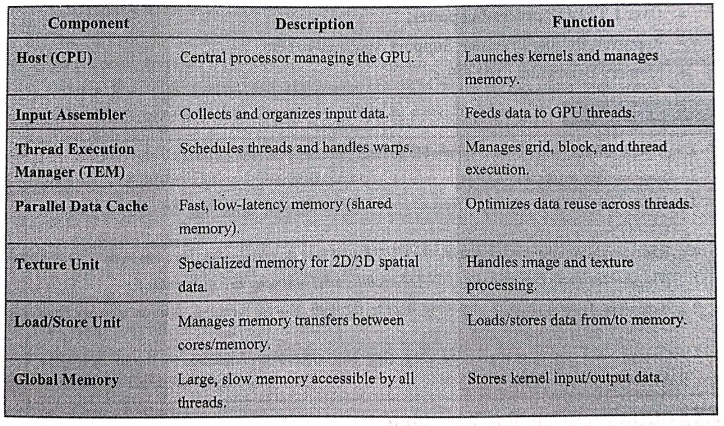

3. Summary of CUDA Architecture Components



4. Example of CUDA Architecture in Real GPUs

1. Example: NVIDIA G80 Architecture (GeForce 8800 GTX)

■ First CUDA‒enabled GPU architecture (introduced in 2006).

■ 16 Streaming Multiprocessors (SMs).

■ Each SM has 8 Streaming Processors (SPs) (also called CUDA cores).

■ Total 128 SPs (16 SMs x 8 SPs).

■ Each SM can support 768 threads.

■ Each SP executes one instruction per clock cycle.

■ Memory Bandwidth : 86.4 GB/s.

■ Total Threads that can run = 128 SPs × 96 threads per SP = 12,228 threads.

2. Example: NVIDIA GT200 Architecture (Tesla C1060)

■ Introduced in 2008 with Compute Capability 1.3.

■ 30 Streaming Multiprocessors (SMs).

■ Each SM has 8 Streaming Processors (SPs).

■ Total 240 SPs (30 SMs x 8 SPs).

■ Supports thousands of threads per application.

■ Over 1 TFLOP processing power.

■ Improved Double Precision Support compared to G80.

■ Memory Bandwidth: 102 GB/s.



Review Questions

1. What is CUDA, and how does it enable general‒purpose computing on GPUs (GPGPU)?

2. State various features of CUDA.

3. How does CUDA organize threads into a hierarchical structure for efficient parallel execution?

4. What are the different memory types in CUDA, and how do they impact performance?

5. What are the main components of CUDA architecture, and what are their roles?

6. How does CUDA optimize memory access through shared memory, texture memory, and load/store units?

7. Compare the key features of NVIDIA G80 and GT200 architectures in terms of CUDA capabilities.
