Applied Physics CSIE II: UNIT IV: Quantum Computing
T Gate
Definition, Action, Matrix form, Operation, Bloch Sphere action | Quantum gates
The T gate is a single‒qubit quantum gate that applies a phase of π/4 (45°) to the |1> state while leaving the |0> state unchanged.
T GATE
Definition
The
T gate is a single‒qubit quantum gate that applies a phase of π/4 (45°) to the |1>
state while leaving the |0> state unchanged.
(or)
The
T‒gate is also called a π/8 gate is a single‒qubit phase gate that leaves |0>
unchanged and multiplies |1> by a phase eiπ/4.
Action
(i)
The T gate applies a phase of π/4 (45°) to the |1> state while leaving the |0>
state unchanged.

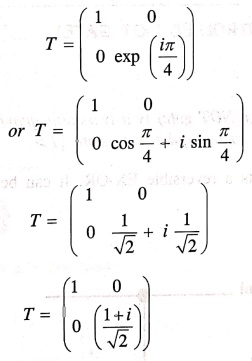

Matrix form
The
matrix for the T gate can be defined as
Operation
(i)
On |0>
T|0> = |0>
(i)
On |1>
T|1> = eiπ/4|1>
Bloch Sphere action
The
T gate performs a rotation around the Z‒axis by π/4 (45°).

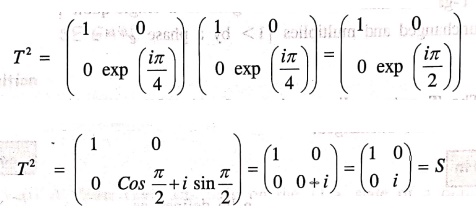

Property
'S'
gate can be obtained by connecting two T gates in series, i.e.,
