Transforms and its Applications: UNIT 3: Fourier Series

Fourier Series: Half Range Cosine series

Fourier Series: Example Important Solved Problems with formula, steps, derivation, answer and Exercise Problems based on Fourier Series - Half range cosine series.

Half-range cosine series



Cosine series: To expand f(x) as a cosine series in (0, π) or (0,l), we extend the function reflecting it in the y‒axis, so that f (−x) = f(x).

 f(x) = g(x) in (0,π) or (0,l) is extended to f(x) = g(‒x) in (‒π, 0) or (‒1, 0).



Problems based on Half‒Range cosine series

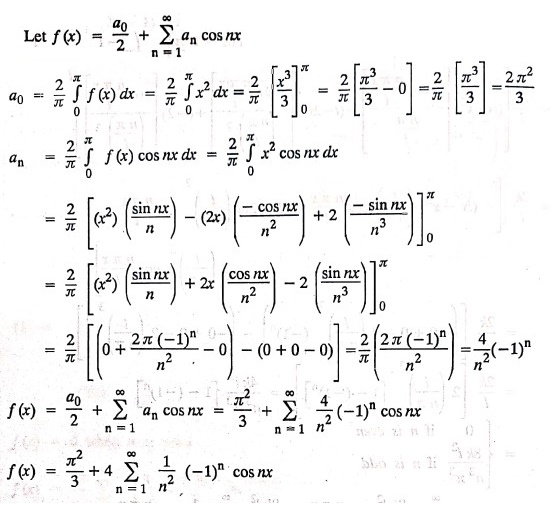

Example 1: Find the Fourier cosine series for f(x) = x2  in 0<x<π.

Solution:

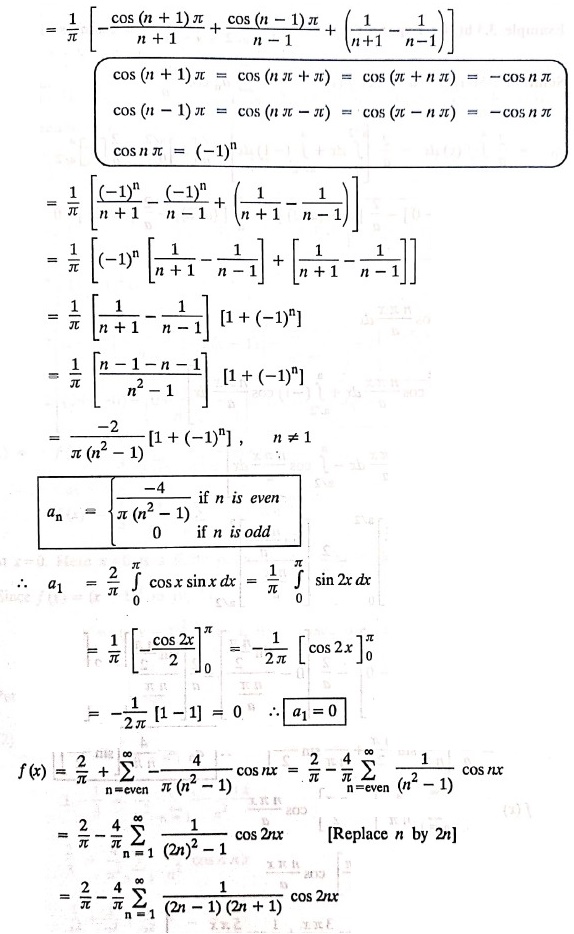

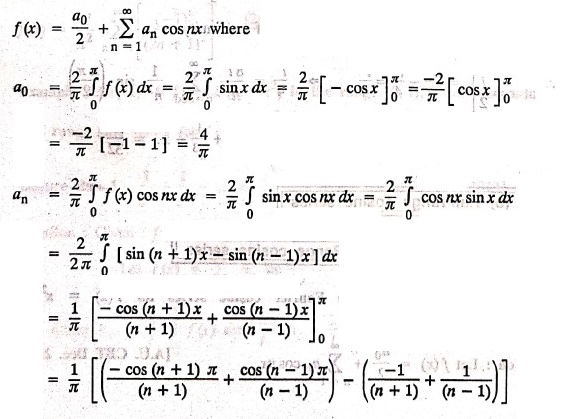

Example 2: Expand the function f(x) = sin x, 0 < x <π in Fourier cosine series.

Solution:

Let the required Fourier cosine series be

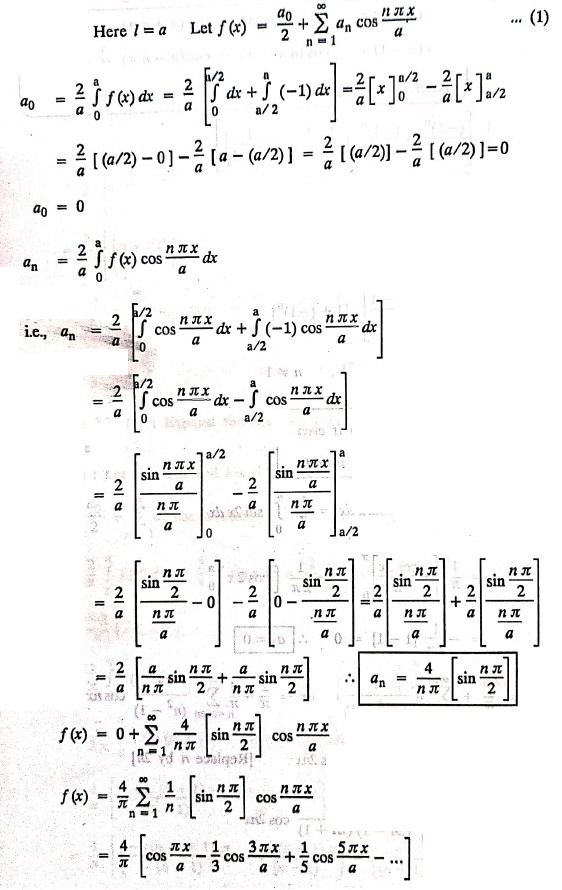

Example 3: Expand f(x) =  as a cosine series.

Solution:

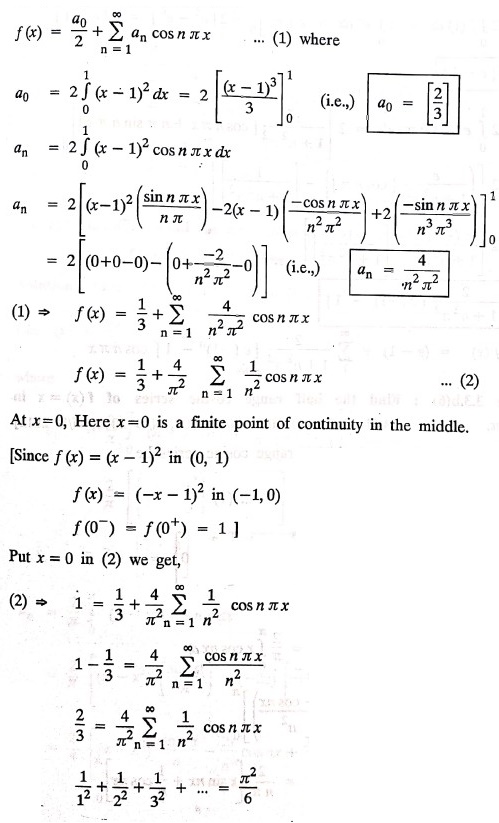

Example 4: Find the Half‒range cosine series for f(x) = (x − 1)2 in (0, 1). Hence show that 1/12 + 1/22 + 1/32 + … = π2/6.

Solution: Here /= 1

The required Fourier cosine series be

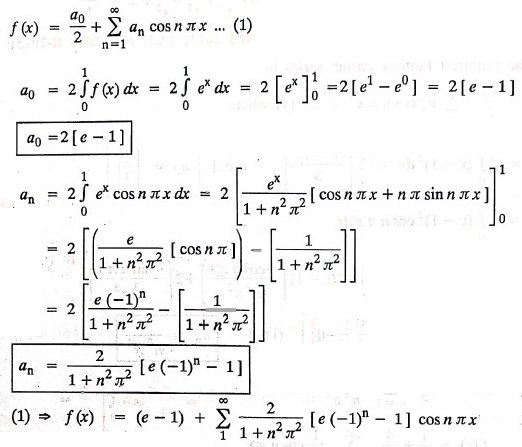

Example 5: Find the cosine series of f(x) = ex in (0,1).

Solution: Let the required Fourier cosine series be

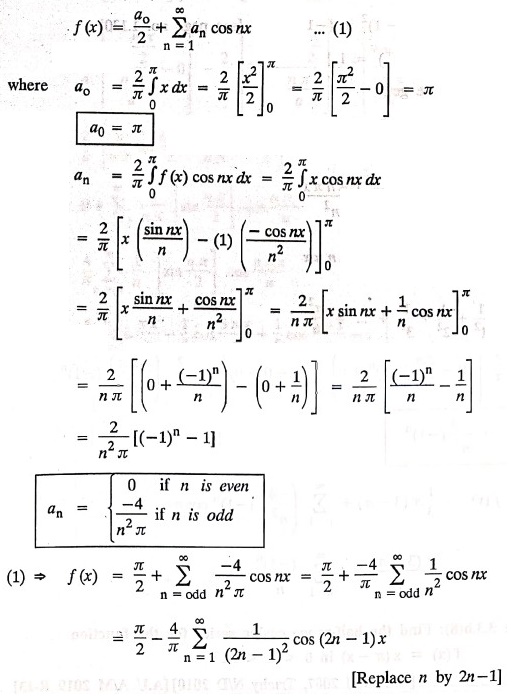

Example 6: Find the half range cosine series of f(x) = x in 0 <x<π.

Solution: Let the required Half range cosine series be

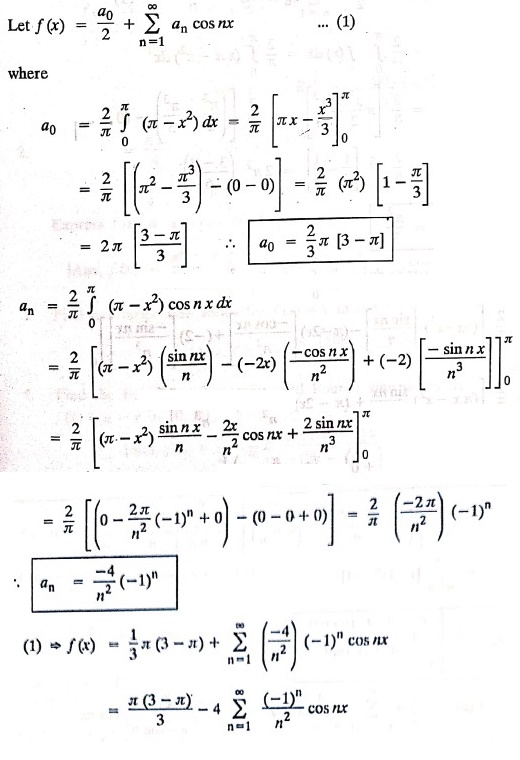

Example 7: Find the half range cosine series of f(x) = (π − x2) in the interval (0,π).

Solution: Given f(x) = (π − x2) in (0,π)

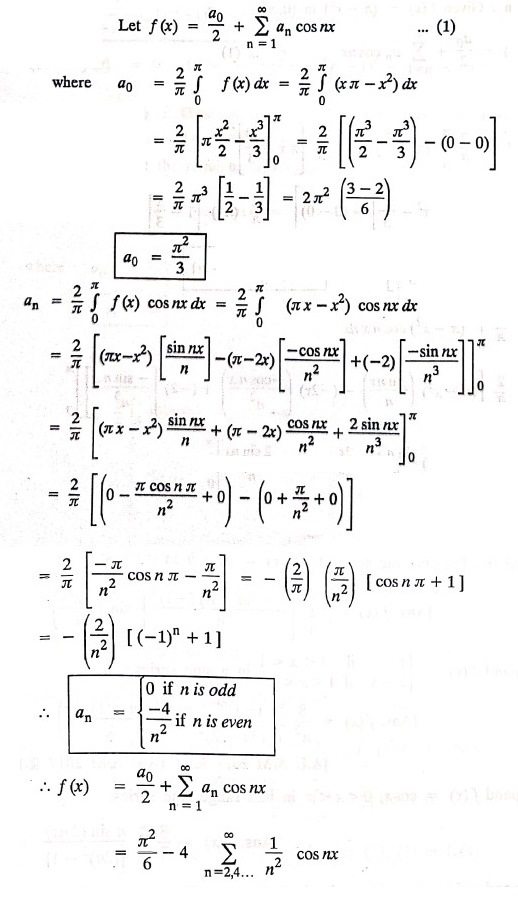

Example 8: Find the half‒range cosine series for the function f(x) = x(π − x) in 0 < x < π.

Solution: Given f(x) = x (π‒x) in 0 < x <π

= πx ‒ x2




EXERCISE



Half range series

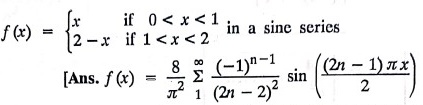

1. Express as a Fourier Sine Series


2. If f(x) = πx / 4, 0<x<π/2

f(x) = π/4 (π‒x), π/2<x<π

Express f(x) in a series of cosines only.


3. Find a Fourier sine series for f(x) = k in 0 < x <π


4. Find the Fourier cosine series, and Fourier sine series for f(x) =π‒x in (0, π)


5. Find the Fourier sine series for f(x) = ax + b in 0 < x < l

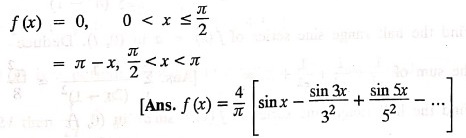

6. Expand


7. Expand f (x) = cosx, 0 < x <π in half range sine series.

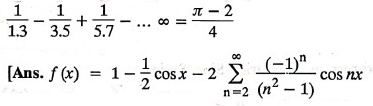

8. Expand x sinx as cosine series in 0 < x <π. Hence, show that


9. Find the half range sine series of f(x) = a in (0, l). Deduce the sum of .

10. Find the half range sine series of f(x) = sin ax in (0, l)
