Transforms and its Applications: UNIT 3: Fourier Series
Fourier Series: Half Range Sine Series
Fourier Series: Example Important Solved Problems with formula, steps, derivation, answer and Exercise Problems based on Half Range Sine Fourier Series.
Half‒Range Sine Series
Sine series: To expand f(x) as a sine series in (0, π) or (0,l), we extend the function reflecting it in the origin, so that f(x) = −f(x).
f(x) = g(x) in (0, π) or (0,1) is extended to f (x) = −g (−x) in (‒π, 0) or (‒l, 0).
Problems based on Half‒Range Sine Series

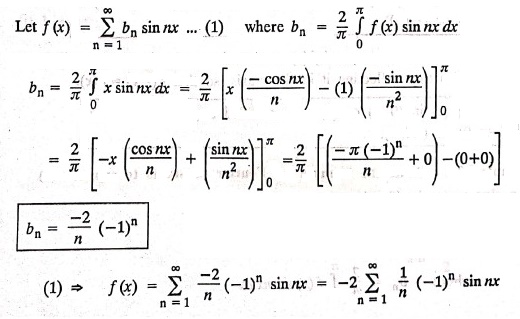

Example 1: Expand the function f(x) = x, 0 < x < π in Fourier sine series
Solution: Given f(x) = x in 0 < x < π

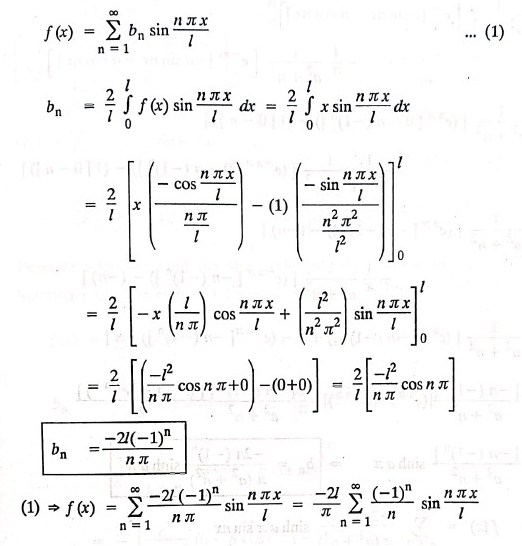

Example 2: Find the Half range Fourier sine series for f(x) = x in (0, l).
Solution:
Let the required Fourier series be

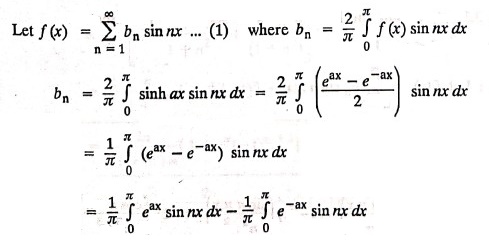

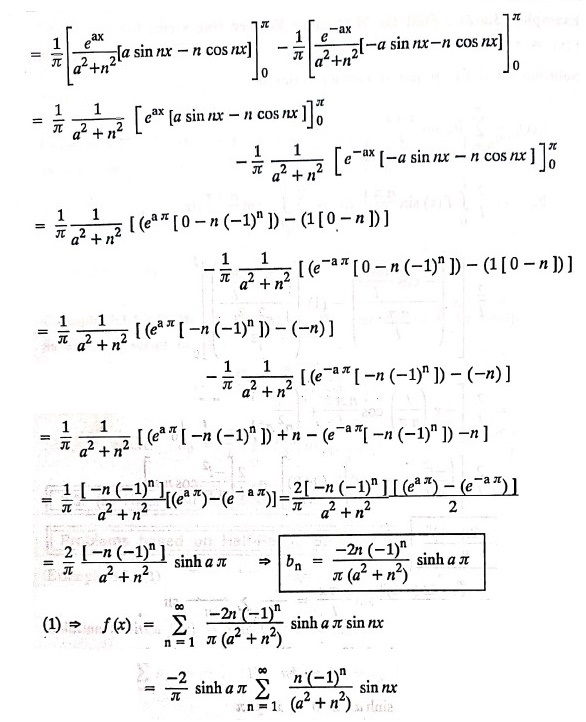

Example 3: Find the half range Fourier sine series for sinh ax in 0 < x < π.
Solution:
Given f(x) = sinh ax in 0 < x < π

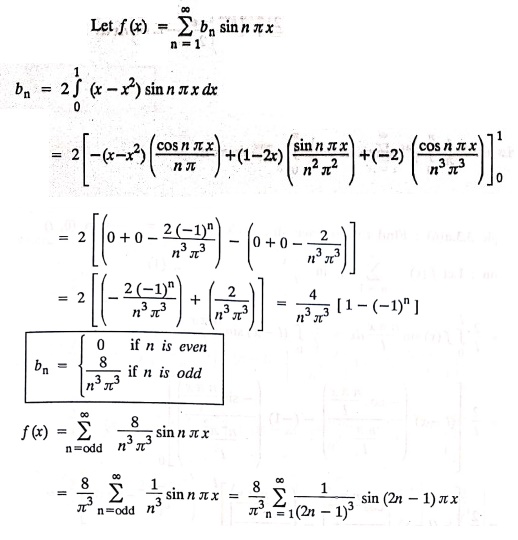

Example 4: Find the half range sine series for the function f(x) = x − x2, 0 <x<1.
Solution:

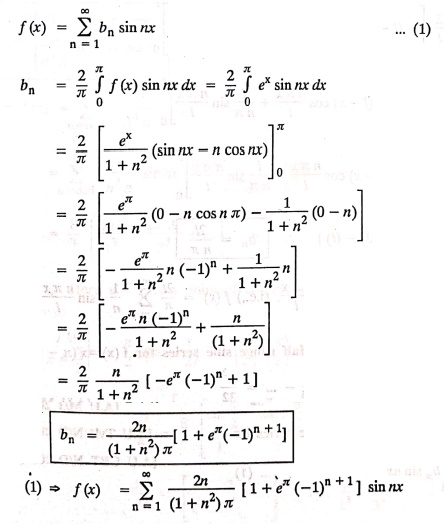

Example 5: Find the sine series of f(x) = ex in (0, π).
Solution: Let the required Fourier series be

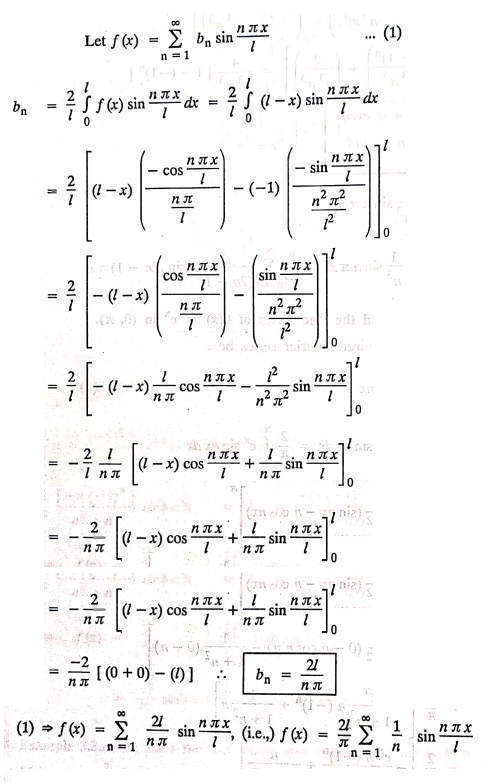

Example 6: Find the Fourier sine series of f(x) = 1−x in (0, l)
Solution:

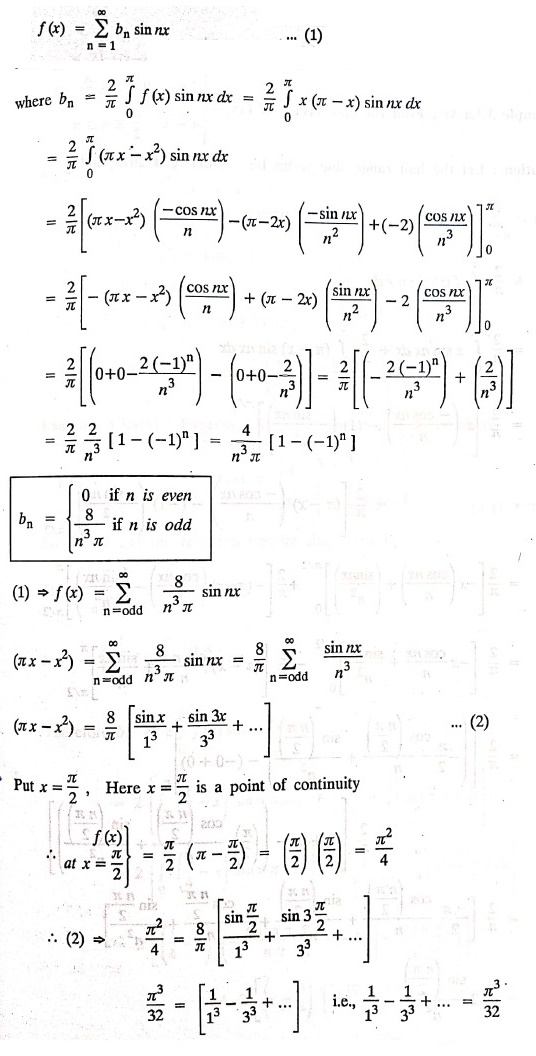

Example 7: Find the Half range sine series for f(x) = x(π − x) in (0, π). Deduce that 1/13 ‒ 1/33 ‒ 1/53 ‒ …. = π3/32.
Solution: Let the half range sine series be

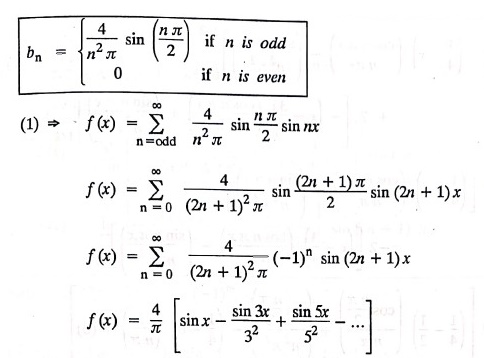

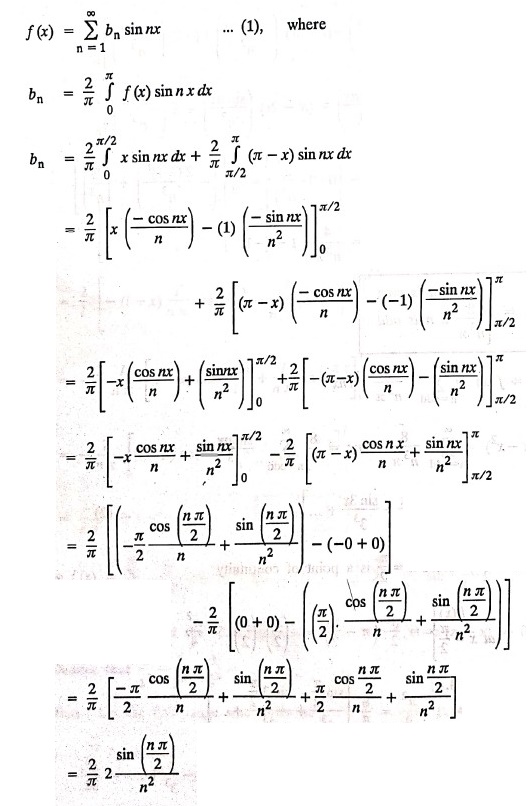

Example 8: Find the sine series of f(x) =
Solution:
Let the half range sine series be
Example 9: Express f(x) as a Fourier sine series where
Solution:
Let the required Fourier sine series be

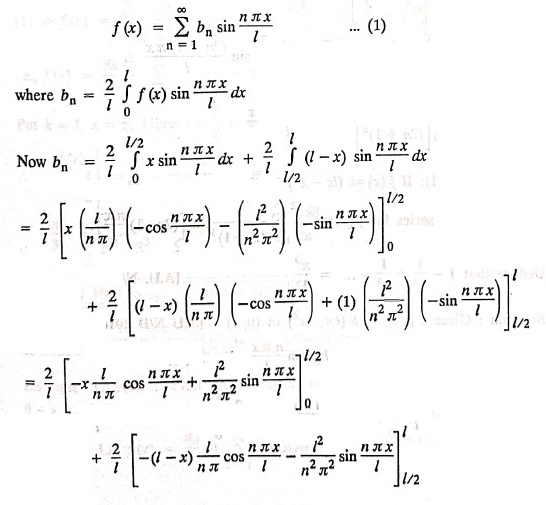

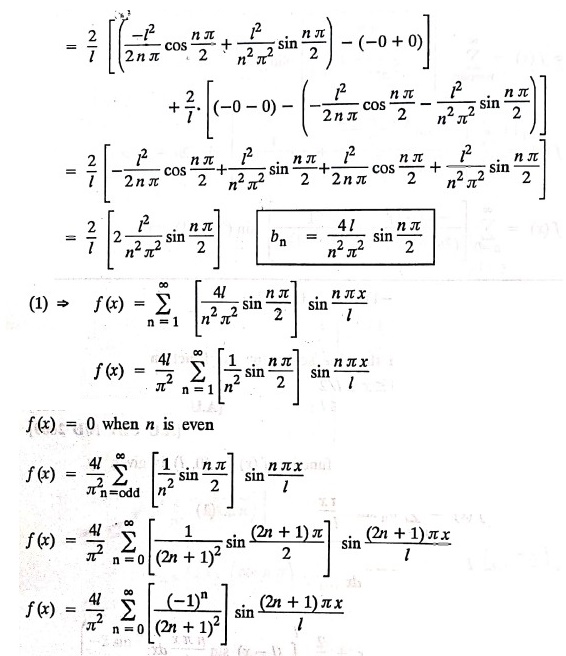

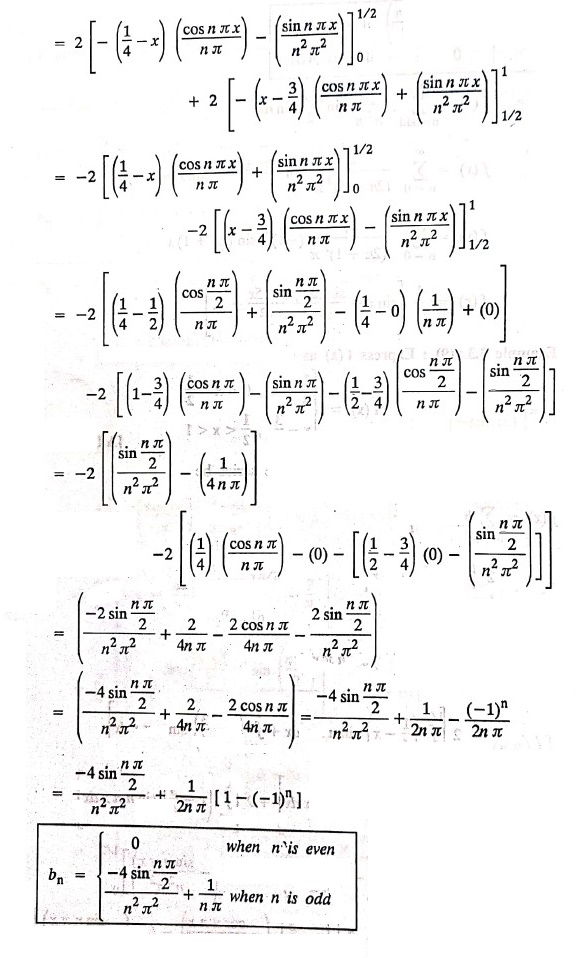

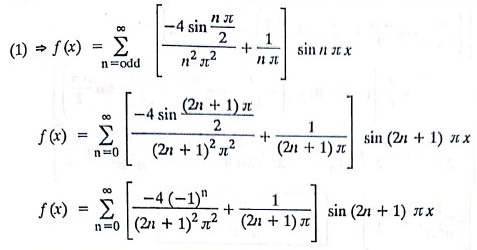

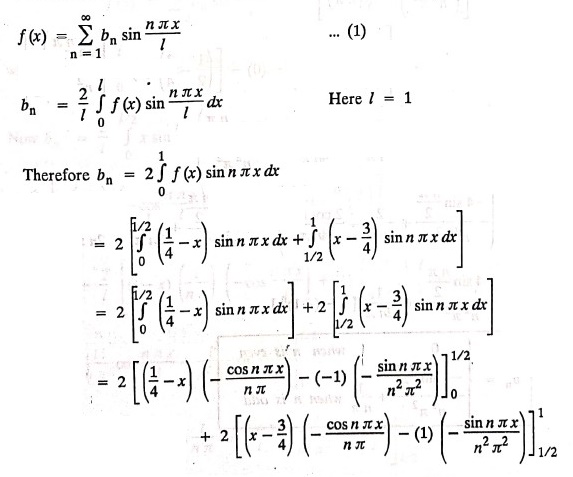

Example 10: Obtain the sine series for the function
Solution: The sine series for the function f(x) in (0, l) is given by

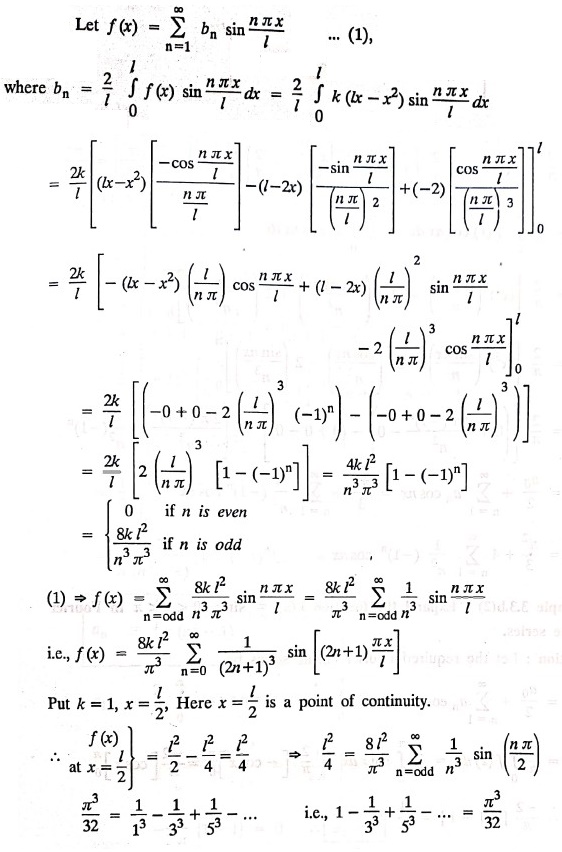

Example 11: If f(x)=k(lx − x2) in the range (0, l), show that the half range sine series for f(x) =
Deduce that 1 ‒ 1/33 + 1/53 ‒ … = π3/32
Solution: Given: f(x) =k(lx − x2) in the range (0, l)
