Applied Physics I: Chapter 4: Oscillations and Waves
Frequency of a vibrating string
Let us consider a string of length 'l' fixed between two points AB.
FREQUENCY
OF A VIBRATING STRING
Let
us consider a string of length 'l'

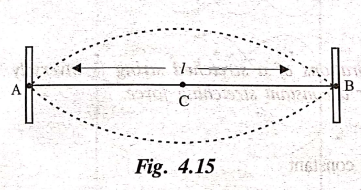

fixed between two points AB as shown in Fig. 4.15.
Let
this string be plucked in the middle at a point 'C' so that it vibrates
transversely only in one segment.
At
the two ends A and B there will be nodes with minimum displacement (or) no
displacement, while in the mid point 'C', there will be an antinode with
maximum displacement.
We
know the velocity of transverse wave is v = √(T/m) …………(1)
If
'n' is the frequency of vibrating string and λ is the wavelength, then, we can
write
Frequency
of the vibrating string n = v/ λ ………..(2)
Substituting
equation (1) in equation (2) we get
n
= 1/ λ . √(T/m)
……………….(3)
When
the string vibrates in one loop as shown in Fig. 4.16, then we can write
AB
= l = λ/2
(or)
λ = 2l ………………..(4)
Substituting
equation (4) in equation (3) we get
n
= 1/2l . √(T/m) ……………….(5)
Equation
(5) is represents the equation for FUNDAMENTAL FREQUENCY.
Laws of transverse vibrations
1) Law of length
The
frequency of transverse vibrations of a stretched string is inversely
proportional to its vibrating length under a constant stretching force.
i.e,
n α 1/l
Where
T & m are constant
2) Law of tension
For
a string of given length and material, the frequency is directly proportional
to the square root of the stretching force (Tension).
i.e.,
n α √T
Where
l, m are constant
3) Law of mass
The
frequency is inversely proportional to the square root of the mass per unit
length, when the tension and the length are kept constant.
i.e.,
n α 1/√m
Where
T, l are constant.
