Question: Explain with neat sketch construction of n‒channel FET. Give also its symbol.

Construction of n-Channel JFET

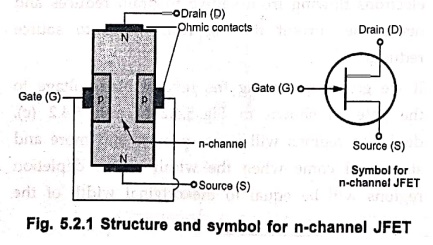

• Fig. 5.2.1 shows structure and symbol of n‒channel JFET. A small bar of extrinsic semiconductor material, n type is taken and at its two ends, two ohmic contacts are made which are the drain and source terminals of FET.

• Heavily doped electrodes of p type material form p‒n junctions on each side of the bar. The thin region between the two p gates is called the channel. Since this channel is in the n type bar, the FET is known as n‒channel JFET.

• The electrons enter the channel through the terminal called source and leave through the terminal called drain. The terminals taken out from heavily doped electrodes of p type material are called gates. Usually, these electrodes are connected together and only one terminal is taken out, which is called gate, as shown in Fig. 5.2.1.

Review Question

1. Explain with neat sketch construction of n‒channel FET. Give also its symbol.
